Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

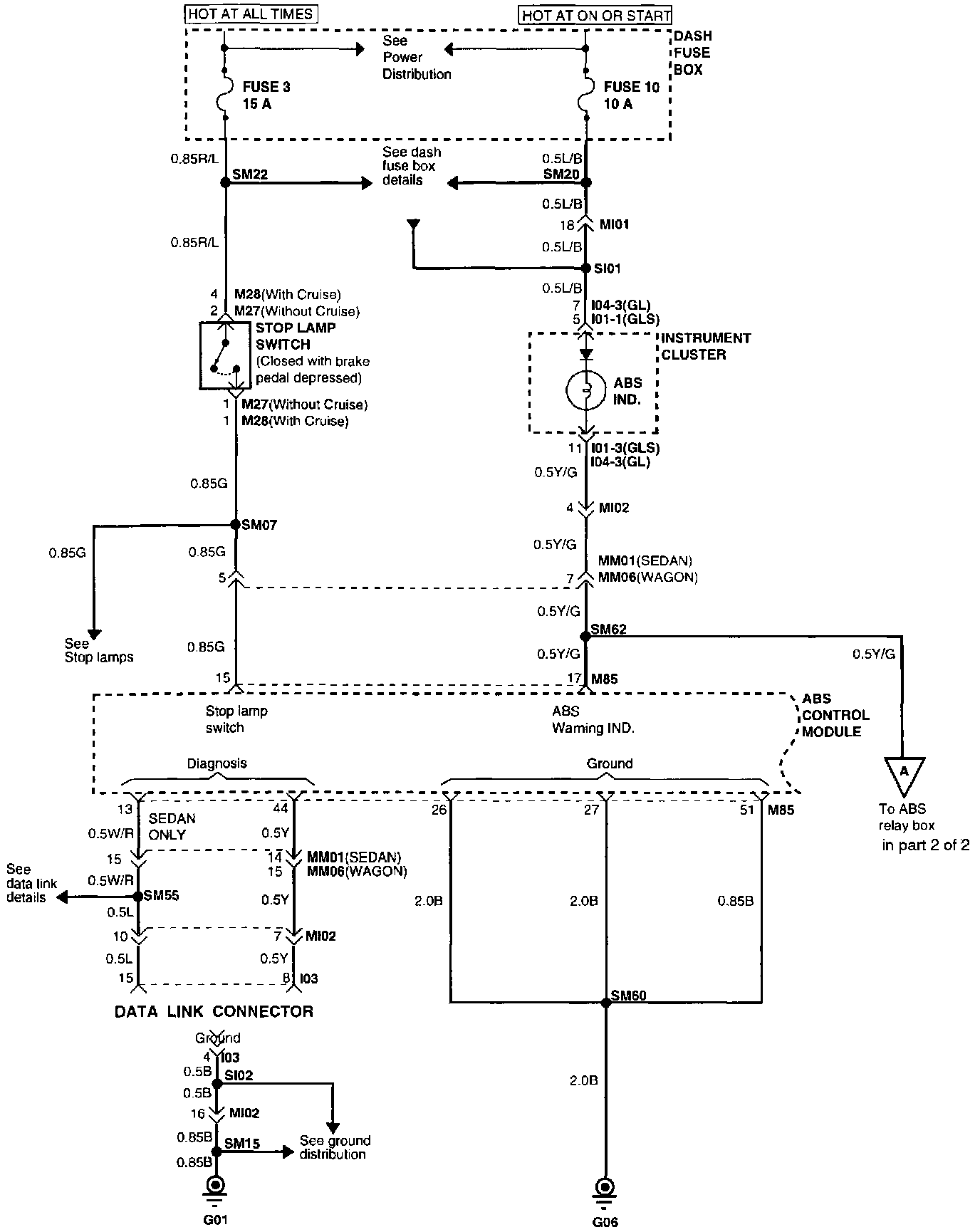

Anti-Lock Brake System (Part 1 Of 3):

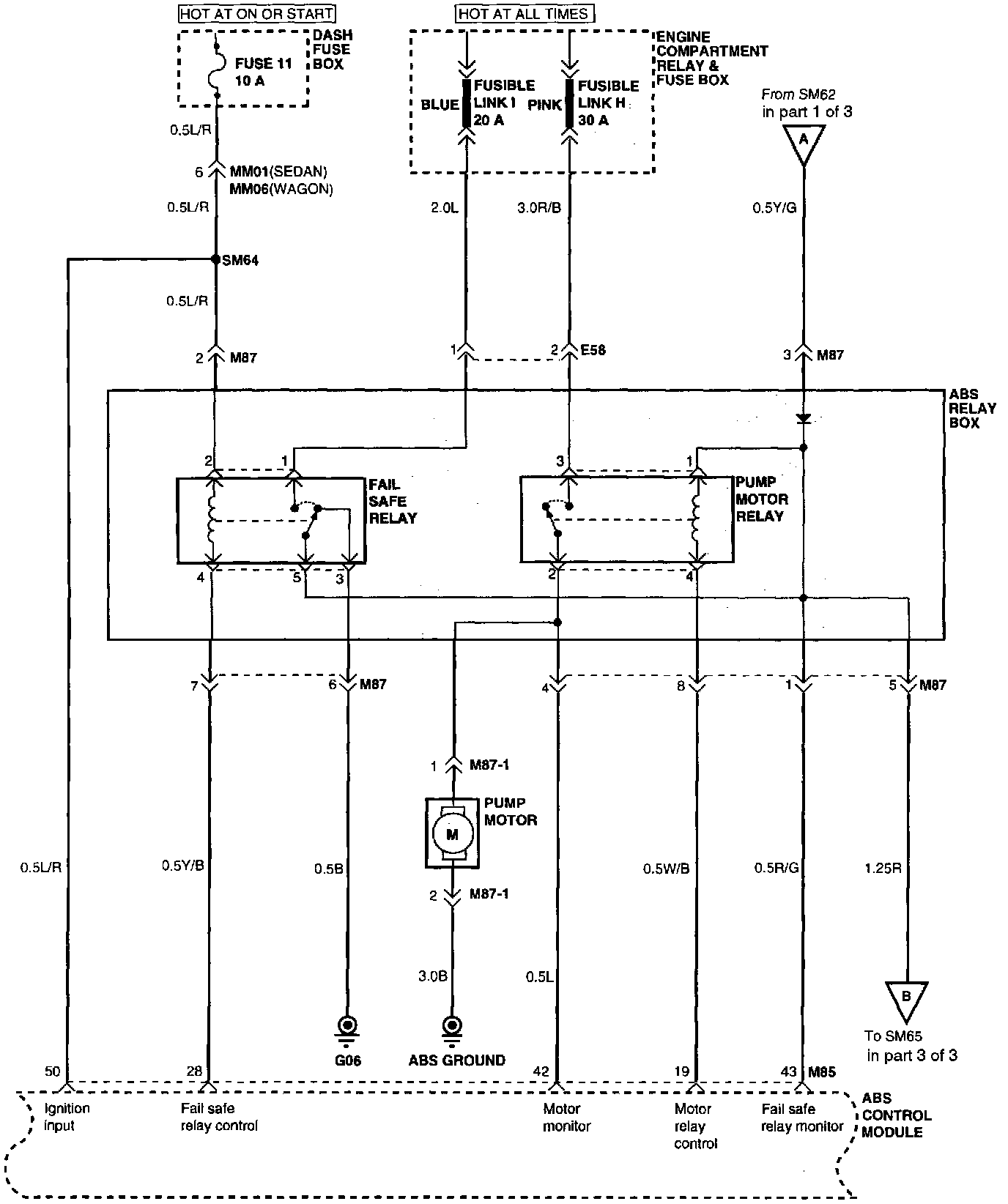

Anti-Lock Brake System (Part 2 Of 3):

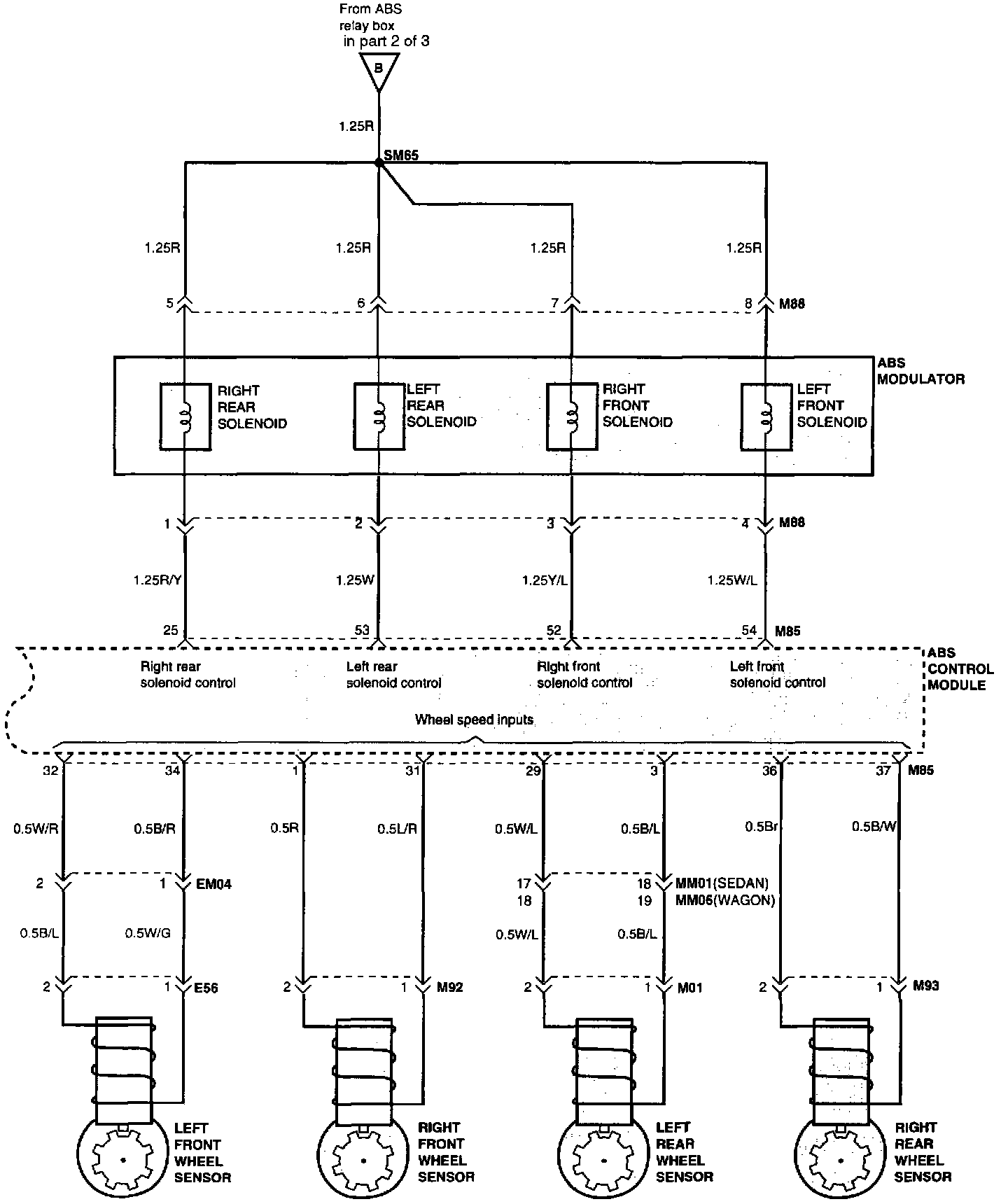

Anti-Lock Brake System (Part 3 Of 3):
