Tail Lamp: Service and Repair

REAR COMBINATION LAMP (FOR SEDAN)

1. Disconnect the battery negative terminal.
2. Open the trunk lid.





3. With rear luggage cover opened, remove the mounting nuts. (4EA)





4. Disconnect the connector, remove the lamp assembly.
5. Installation is the reverse order of removal procedure.

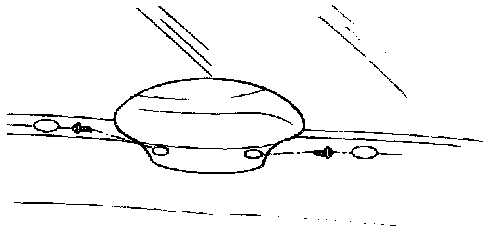

HIGH MOUNTED STOP LAMP (FOR SEDAN)





1. Disconnect the battery negative terminal.
2. Using a (-) driver, detach 2 blanking covers on both sides of the lamp.
3. Remove the mounting screws (2EA).





4. Remove the lamp assembly from the rear package trim.
5. Disconnect the connector from main harness.
6. Installation is the reverse order of removal procedure.
