Turn Signals: Service and Repair

FRONT TURN SIGNAL LAMP





1. Disconnect the battery negative terminal.
2. After removal of the screw, remove the turn signal lamp.
3. Remove the front bumper cover mounting screws (4EA).





4. After removal of the head lamp mounting bolts (3EA), remove the head lamp assembly by slightly pulling front ward the front bumper cover.
5. Installation is the reverse order of removal procedure.

REAR COMBINATION LAMP (FOR SEDAN)
1. Disconnect the battery negative terminal.
2. Open the trunk lid.

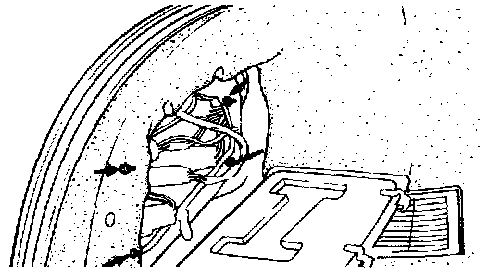

3. With rear luggage cover opened, remove the mounting nuts. (4EA)





4. Disconnect the connector, remove the lamp assembly.
5. Installation is the reverse order of removal procedure.
