Removal and Installation

1. Disconnect the battery negative terminal.





2. Remove the shift lever boot and the rheostat assembly using a (-) driver.





3. Remove the center facia panel mounting screws. (2EA)





4. Disconnect the heater control cable and connectors (6EA), and then remove the center facia panel.

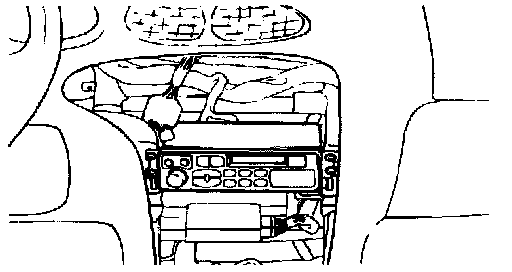

5. Remove the audio mounting screws (4EA) and remove the audio.
6. Installation is the reverse order of removal procedure.
