Power Locks: Service and Repair

COMPONENTS





CIRCUIT DIAGRAM

INSPECTION OF COMPONENTS

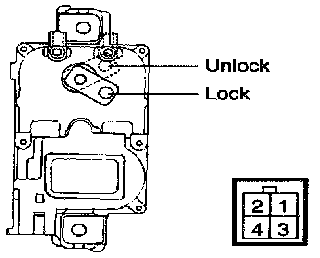

Door lock control actuator
1. Disconnect the actuator connector from the wiring harness








2. Apply battery voltage (DC 12 V) to each terminal as shown in the table and confirm that the actuator makes corresponding operation.

Door lock control module

1. Remove the door lock control module.








2. Check for continuity between the terminals. If continuity is not as specified, replace the door lock control module.
