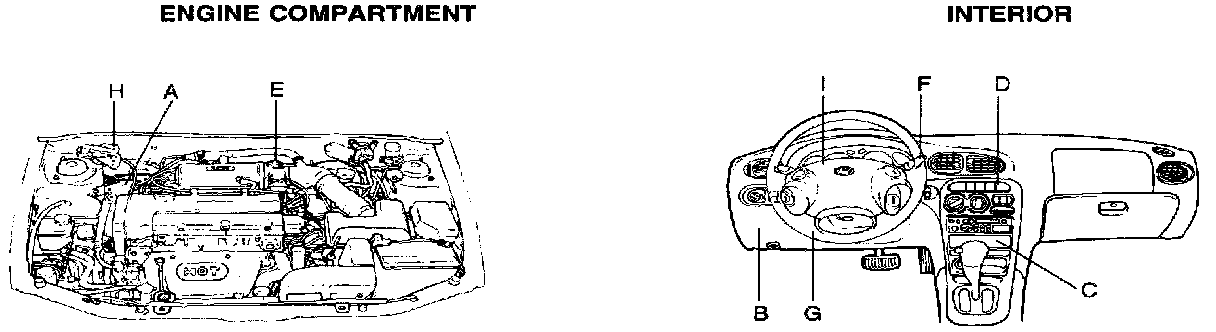

Master Locator

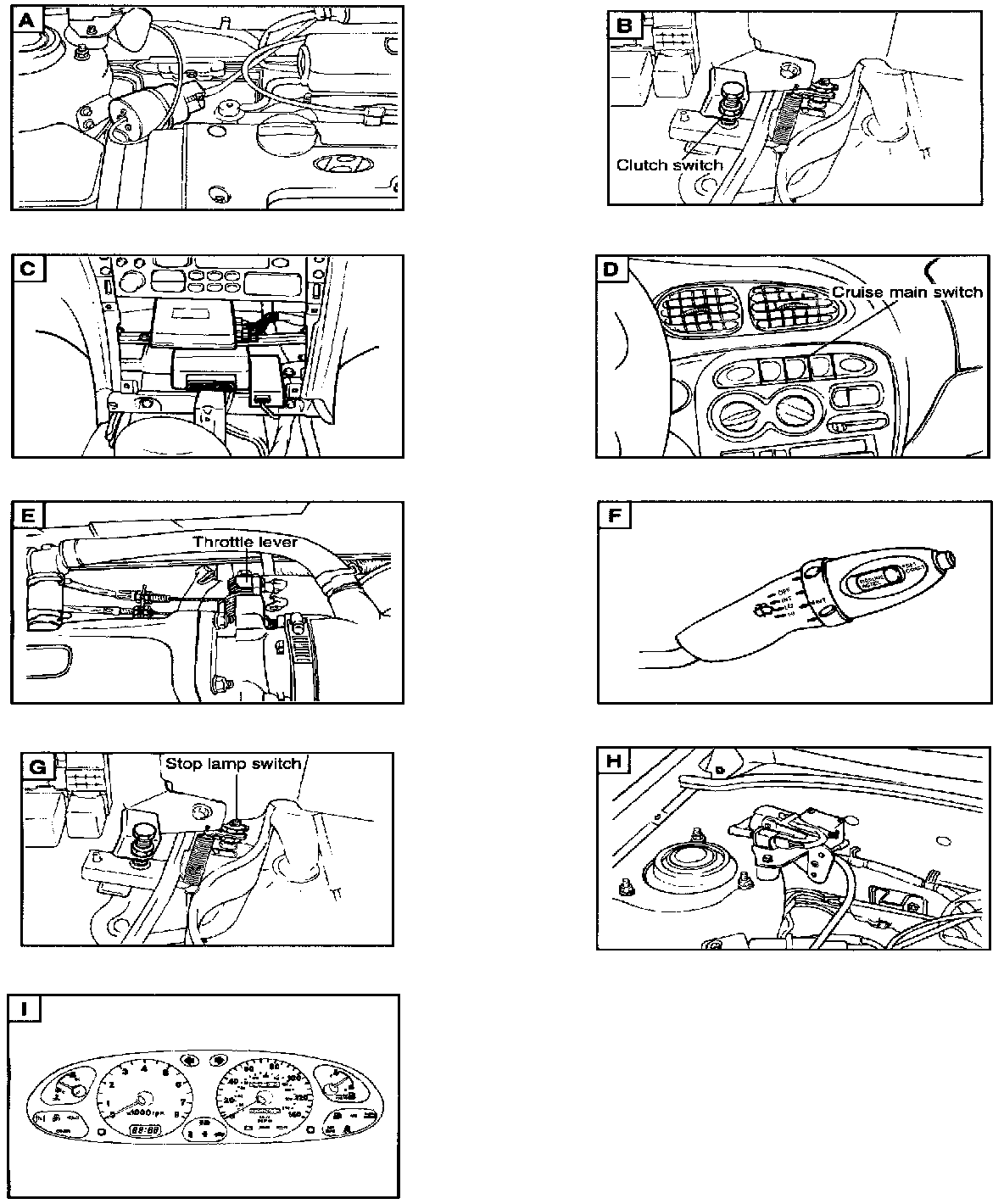

COMPONENTS LOCATION








NAME SYMBOL
Actuator A
Clutch switch B
Cruise control module C
Cruise main switch D
Pulley assembly E
Speed control switch
(in multi function switch) F
Stop lamp switch G
Vacuum motor H
Vehicle speed sensor I
