System Diagram

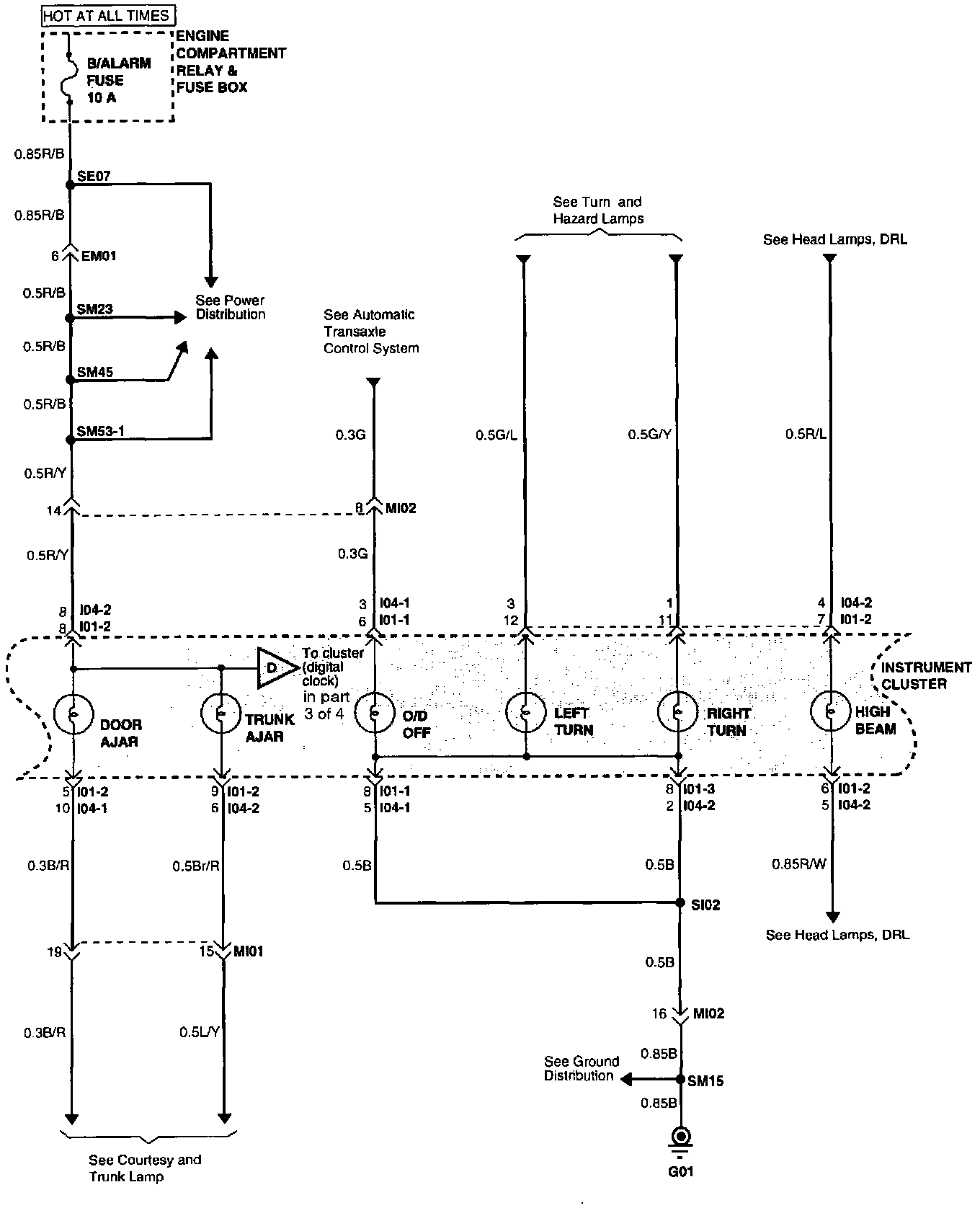

Indicators and Gauges (Clock Contained) (Part 1 Of 4):

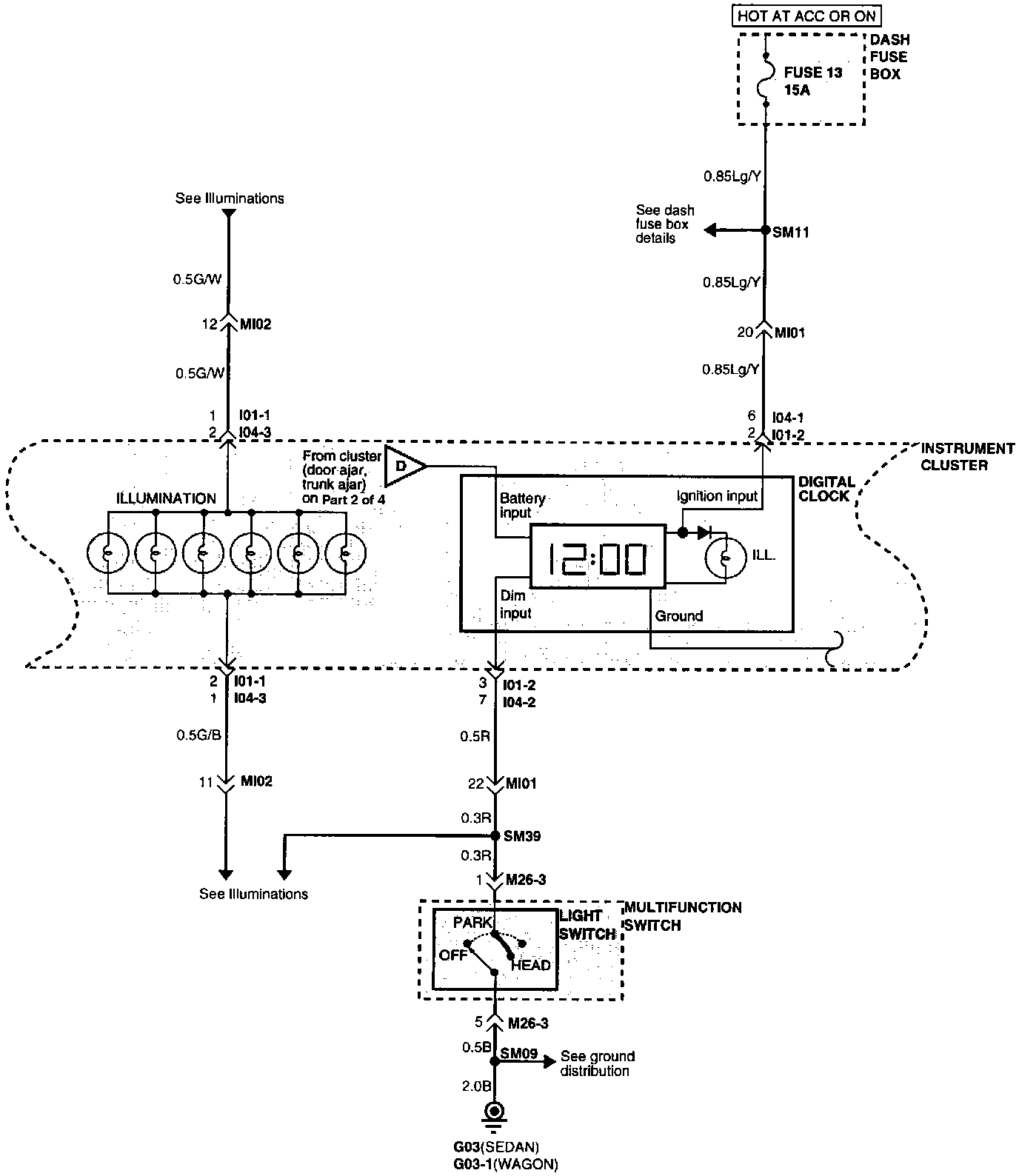

Indicators and Gauges (Clock Contained) (Part 2 Of 4):

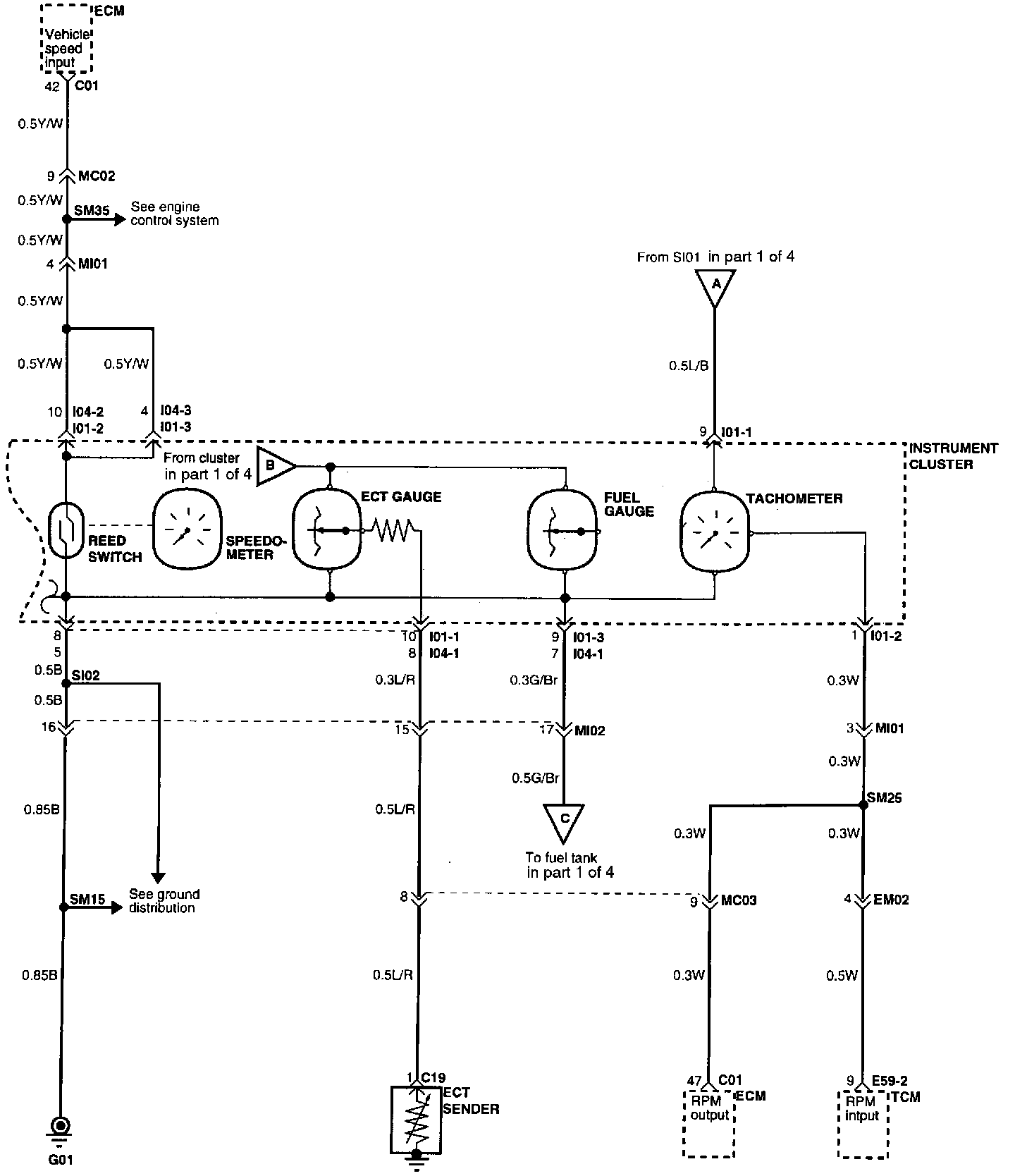

Indicators and Gauges (Clock Contained) (Part 3 Of 4):




Indicators and Gauges (Clock Contained) (Part 4 Of 4):
