Fuse Block

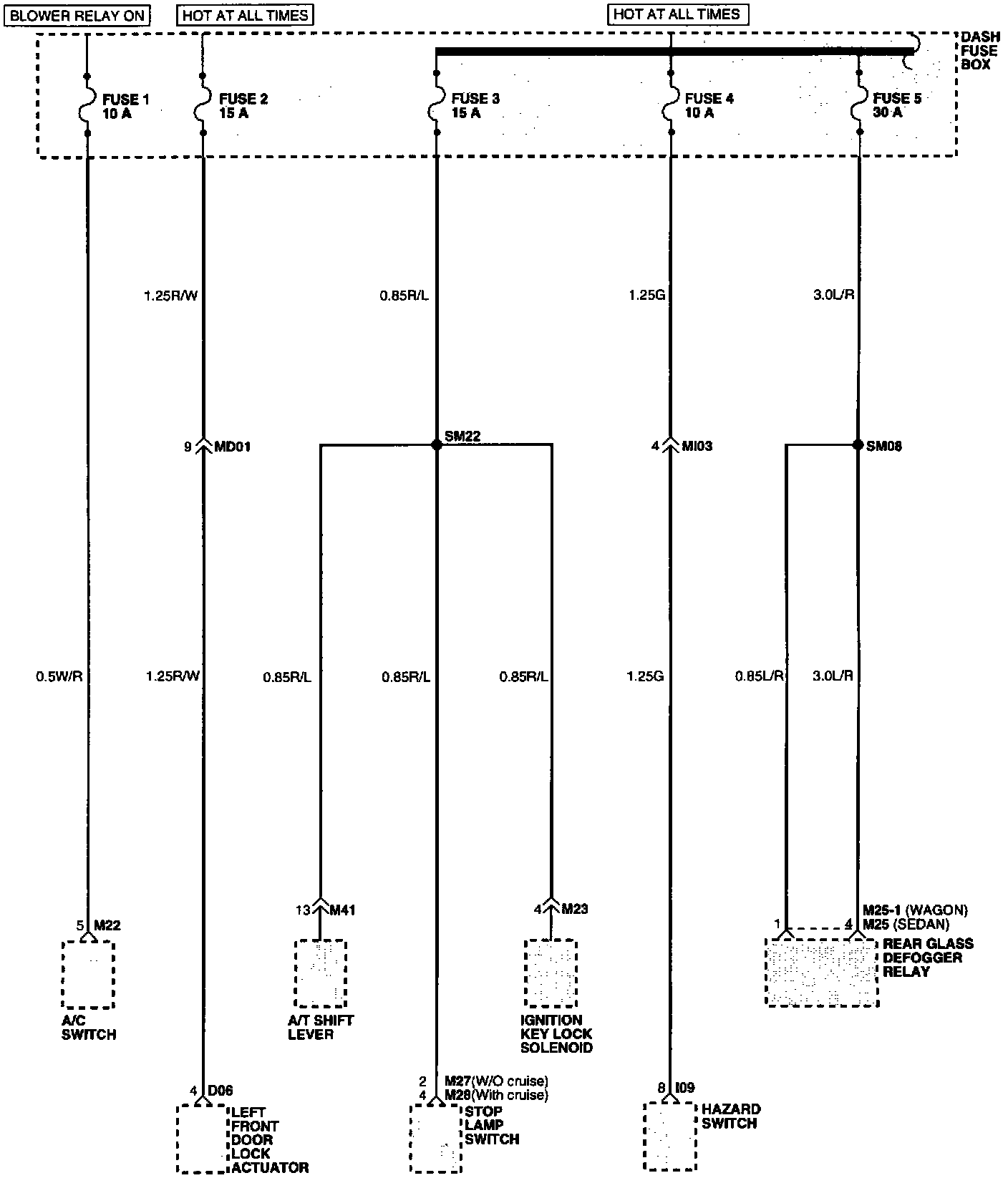

Dash Fuse Box Details (Part 1 Of 7):

Part 1 of 7

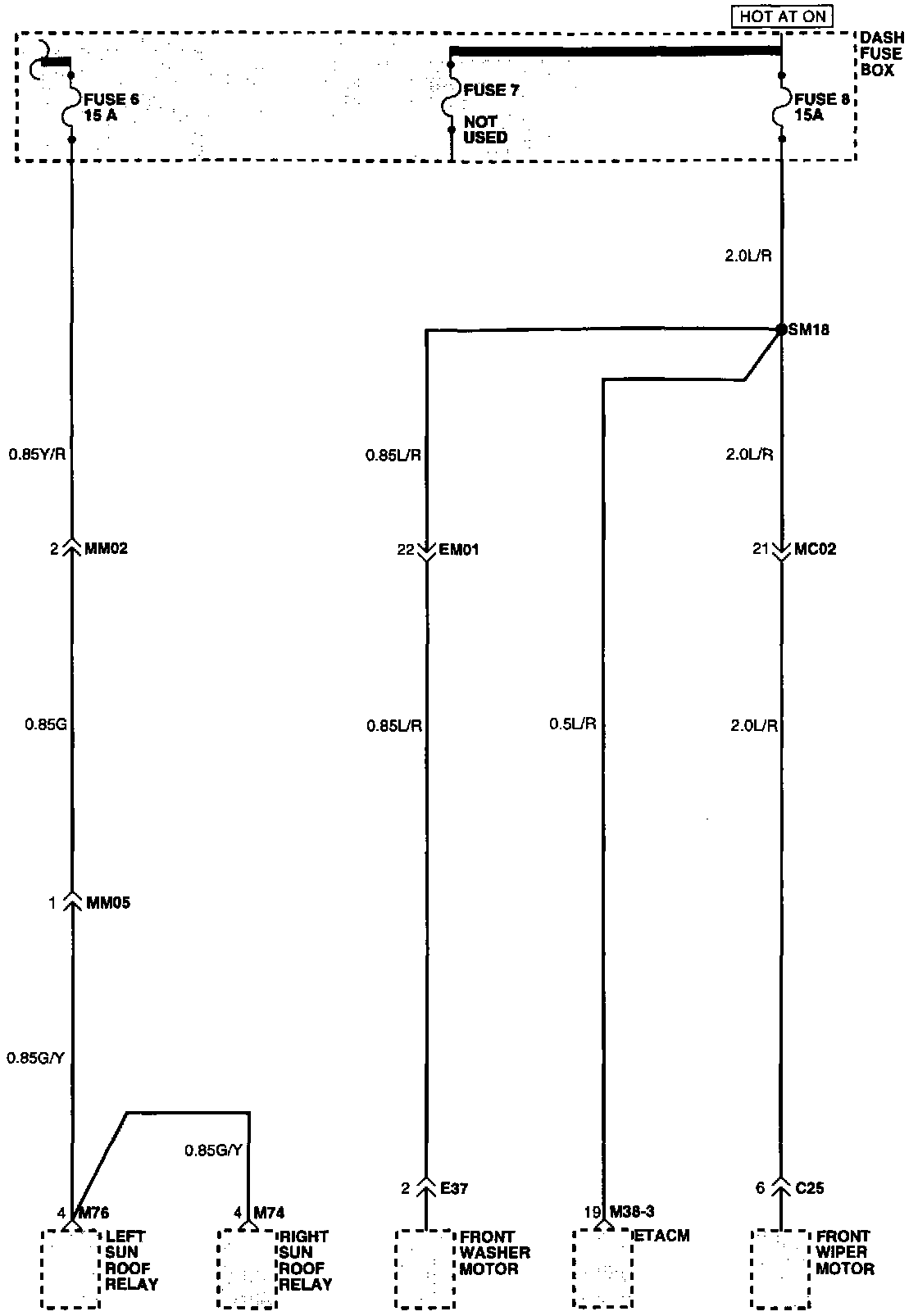

Dash Fuse Box Details (Part 2 Of 7):

Part 2 of 7

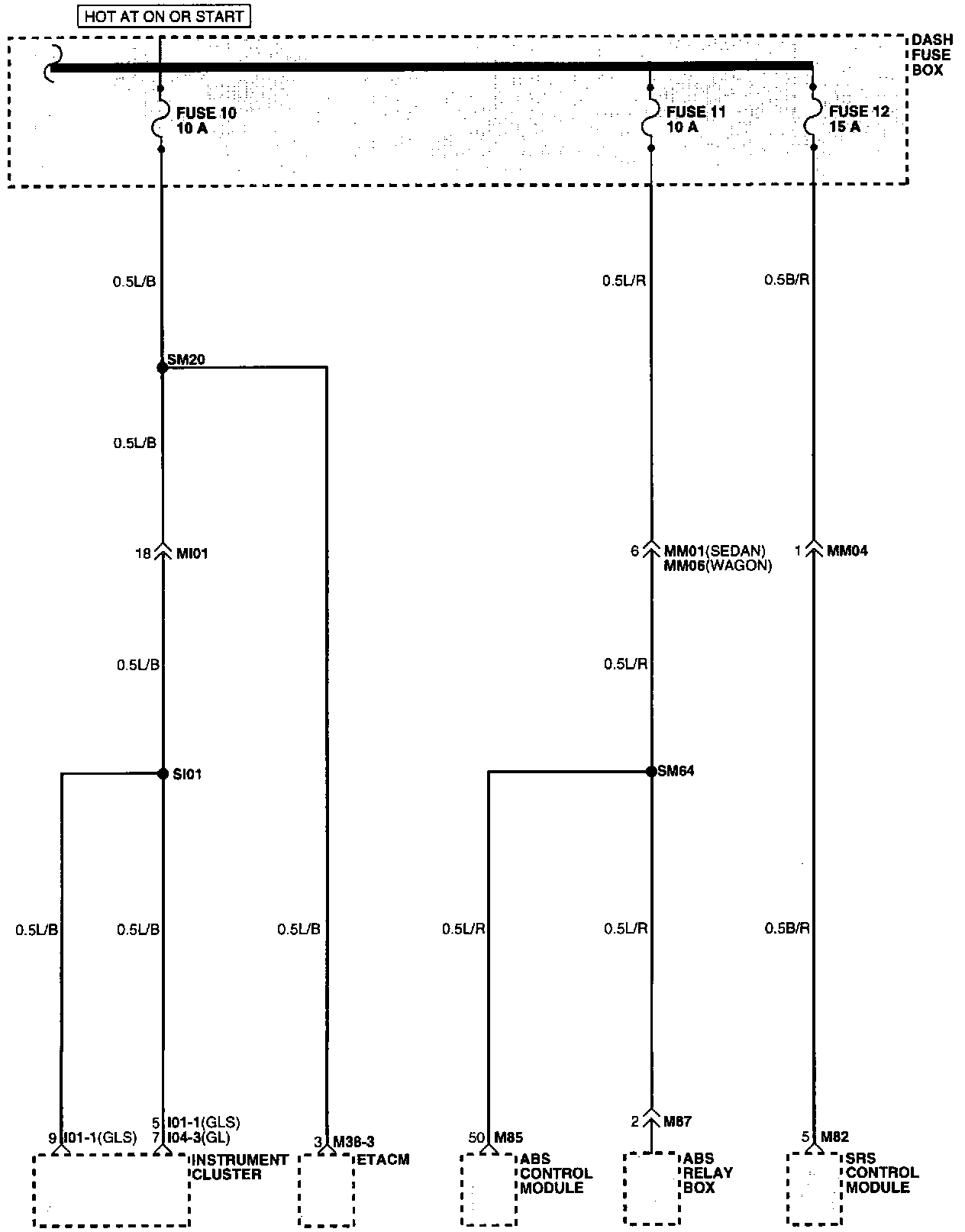

Dash Fuse Box Details (Part 3 Of 7):

Part 3 of 7

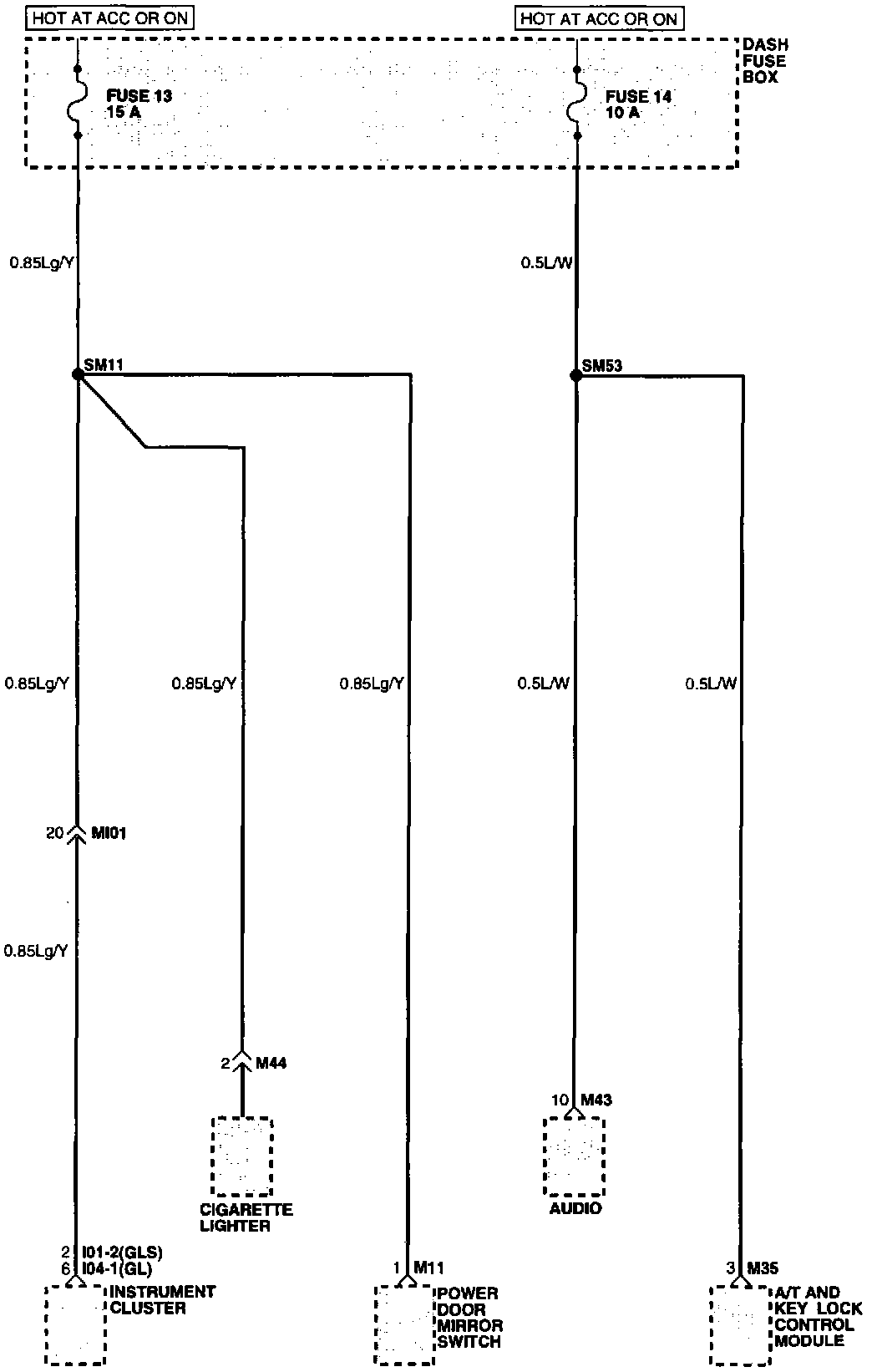

Dash Fuse Box Details (Part 4 Of 7):

Part 4 of 7

Dash Fuse Box Details (Part 5 Of 7):

Part 5 of 7

Dash Fuse Box Details (Part 6 Of 7):

Part 6 of 7

Dash Fuse Box Details (Part 7 Of 7):

Part 7 of 7
