Control Harness

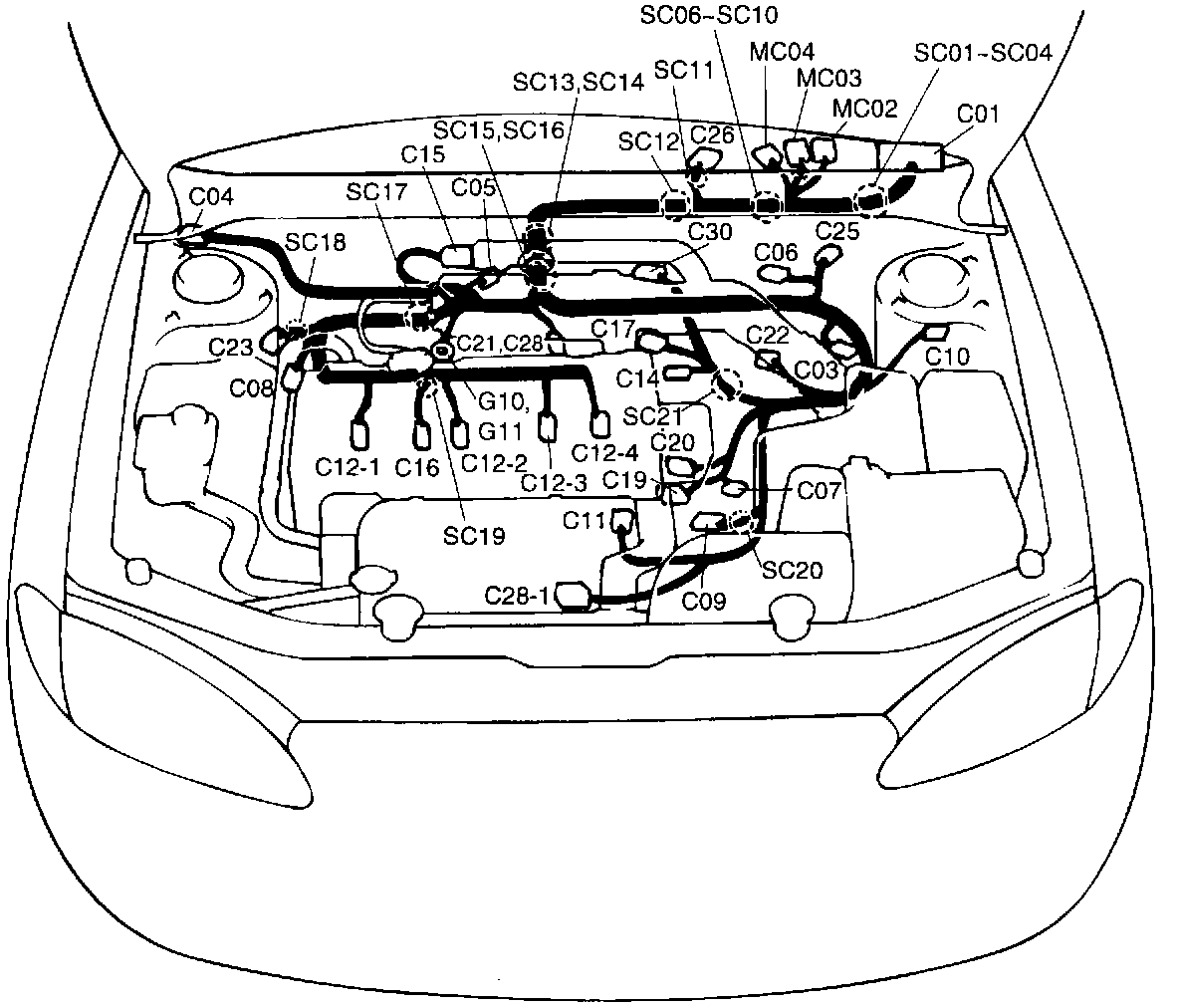

Control Harness:

C01 Electronic control module (ECM)
C03 Canister purge control valve (PCV)
C04 Cruise control actuator
C05 Fuel pump checker
C06 Brake fluid level sensor
C07 Intake air temperature (IAT) sensor
C08 A/C compressor
C09 Crankshaft position (CKP) sensor
C10 Acceleration sensor
C11 Oil pressure switch
C12-1 Injector #1
C12-2 Injector #2
C12-3 Injector #3
C12-4 Injector #4
C14 Ignition coil
C15 Idle speed actuator (ISA)
C16 Camshaft position (CMP) sensor
C17 Throttle position sensor (TPS)
C19 Engine coolant temperature (ECT) sender
C20 Engine coolant temperature (ECT) sensor
C21 Front heated oxygen sensor (UCC)
C22 MAF sensor
C23 Knock sensor
C25 Wiper motor
C26 MFI control relay
C2B Rear heated oxygen sensor(CCC)
C28-1 Front heated oxygen sensor(CCC)
C30 Idle switch
MC02 Connection with MAIN harness
MC03 Connection with MAIN harness
MC04 Connection with MAIN harness
G10 Ground
G11 Ground
