Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1997
>>
Elantra GLS Wagon L4-1.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

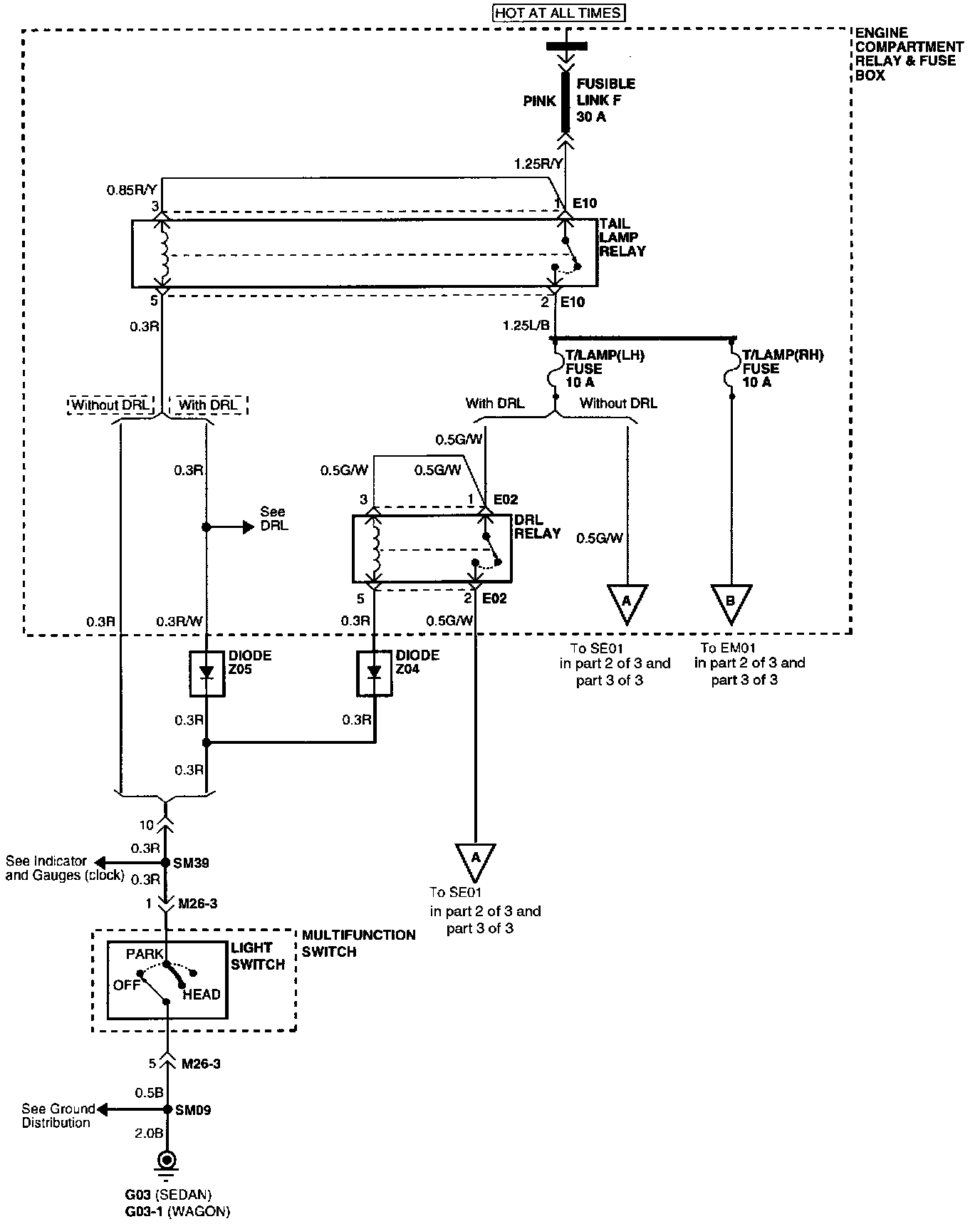

Tail, Parking And License Lamps (Part 1 Of 3):
Tail, Parking And License Lamps (Part 2 Of 3):
