Tires: Service and Repair



CAUTION: The temporary spare tire should not used in the wheel rotation.

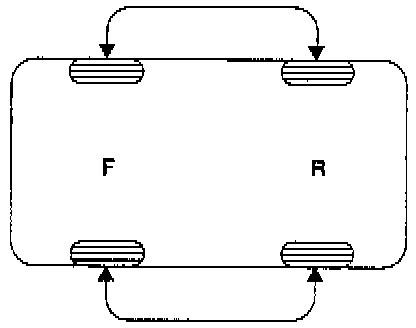

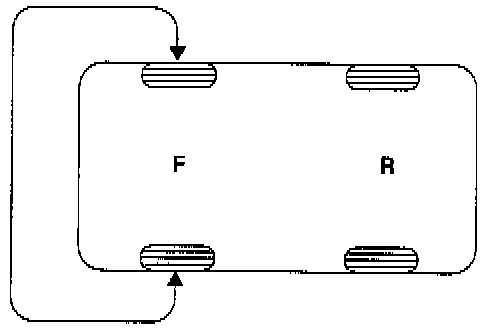

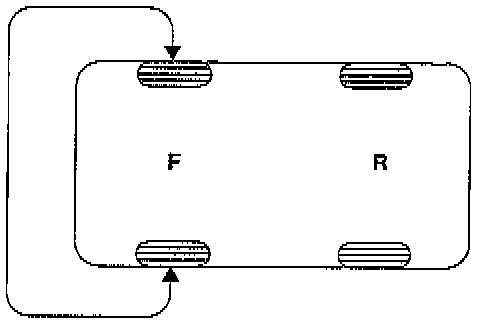

1. Rotate the tires in the patterns illustrated.
2. If the steering pulls to one side, use the following wheel rotation procedures.





a. Interchange the front right and front left tires, and perform the road test in order to confirm the vehicle stability.





b. If the steering wheel pulls to opposite side, interchange the front and rear tires, and again perform the road test.





c. If the steering wheel continues to pull to one side. Interchange the front right and left tires again, and again perform the road test.





d. If the steering wheel continues to pull to the opposite side, replace the front wheels with new ones.
