Checking Steering Wheel Free Play

1. Start the engine and with the steering wheel in the straight ahead position, apply a force of 5 N (1.1 lb.) while turning the steering wheel.

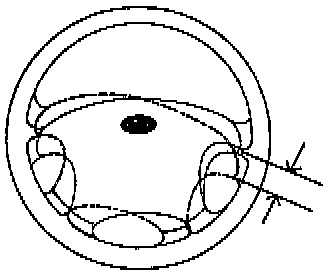

2. Measure the free play at the circumference of the steering wheel, the standard value should be 0-30 mm (0-1.1 inch).
3. If the play exceeds the standard value, inspect the contact of the steering shaft and tie rod ends.
