Tie Rod: Testing and Inspection

1. Give 10 hard swings to the tie rod.

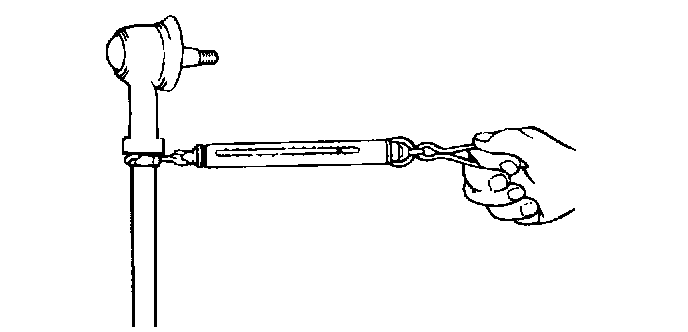

2. Measure the tie rod swing resistance with a spring scale, the tie rod swing resistance [Standard value] should be 8-22 N (1.9-4.6 lb.) [2-5 Nm (17-43 inch lbs.)].

NOTE: Even if the measured value is below the standard value, a tie rod that swings smoothly without excessive play may be used. If the measured value is below 4.3 N (0.9 lbs.)[100 Nm (8.7 inch lbs.)], replace the tie rod.

3. If the measured value exceeds the standard value, replace the tie rod assembly.
