Symptom Related Diagnostic Procedures

Diagnostic Flow:

TROUBLESHOOTING
Malfunctions of the auto transaxle can lead to other problems, such as those described below:
1. Improper maintenance and/or adjustments
2. Electronic control malfunctions
3. Mechanical functions
4. Hydraulic control
5. Engine performance malfunctions etc.

In order to properly troubleshoot the source of these malfunctions, it is first essential to methodically question the owner concerning the problem. The driver should also be asked whether or not the problem has occurred more than once.

Troubleshooting tests should be conducted as described in "diagnostic flow" above.

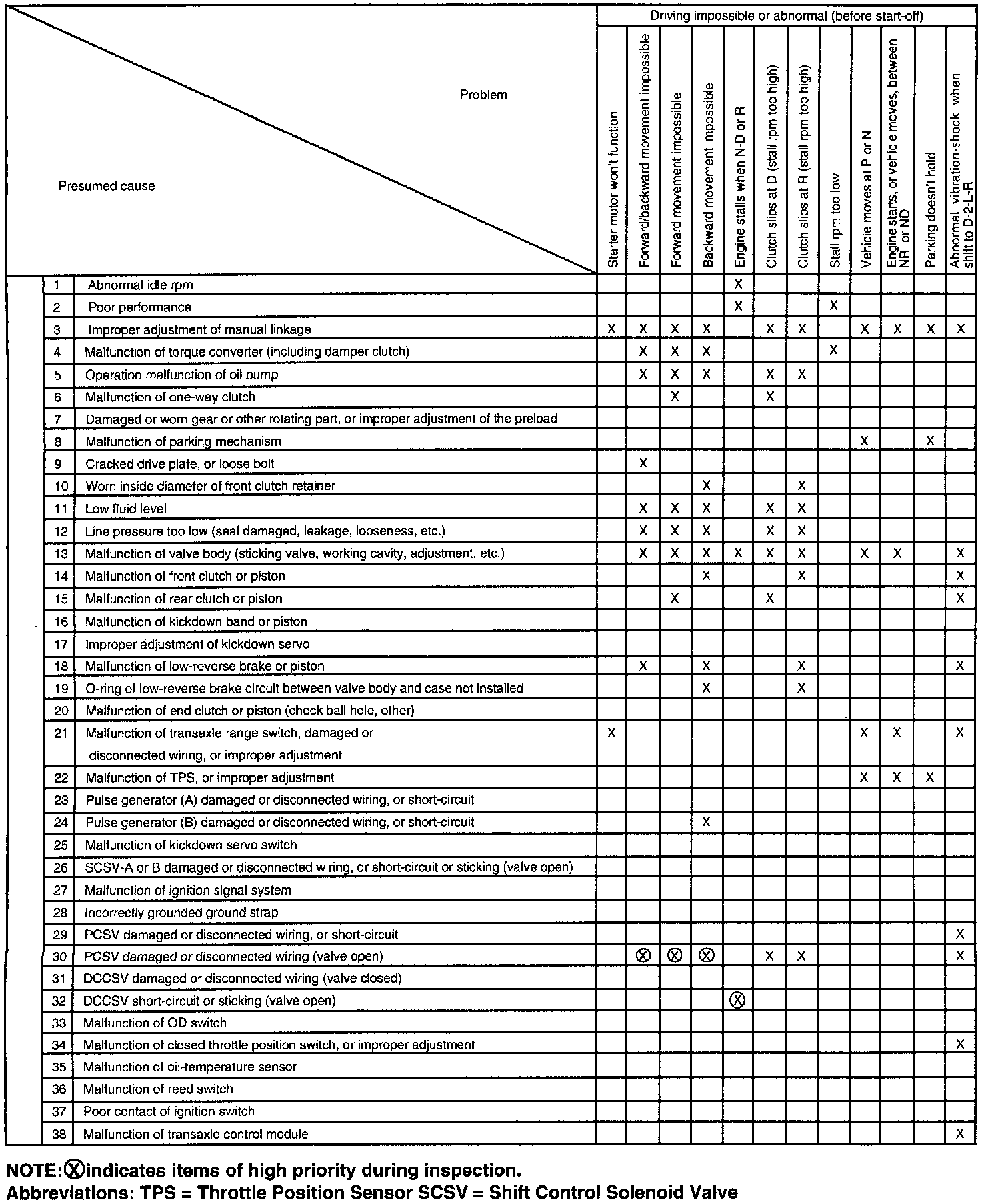

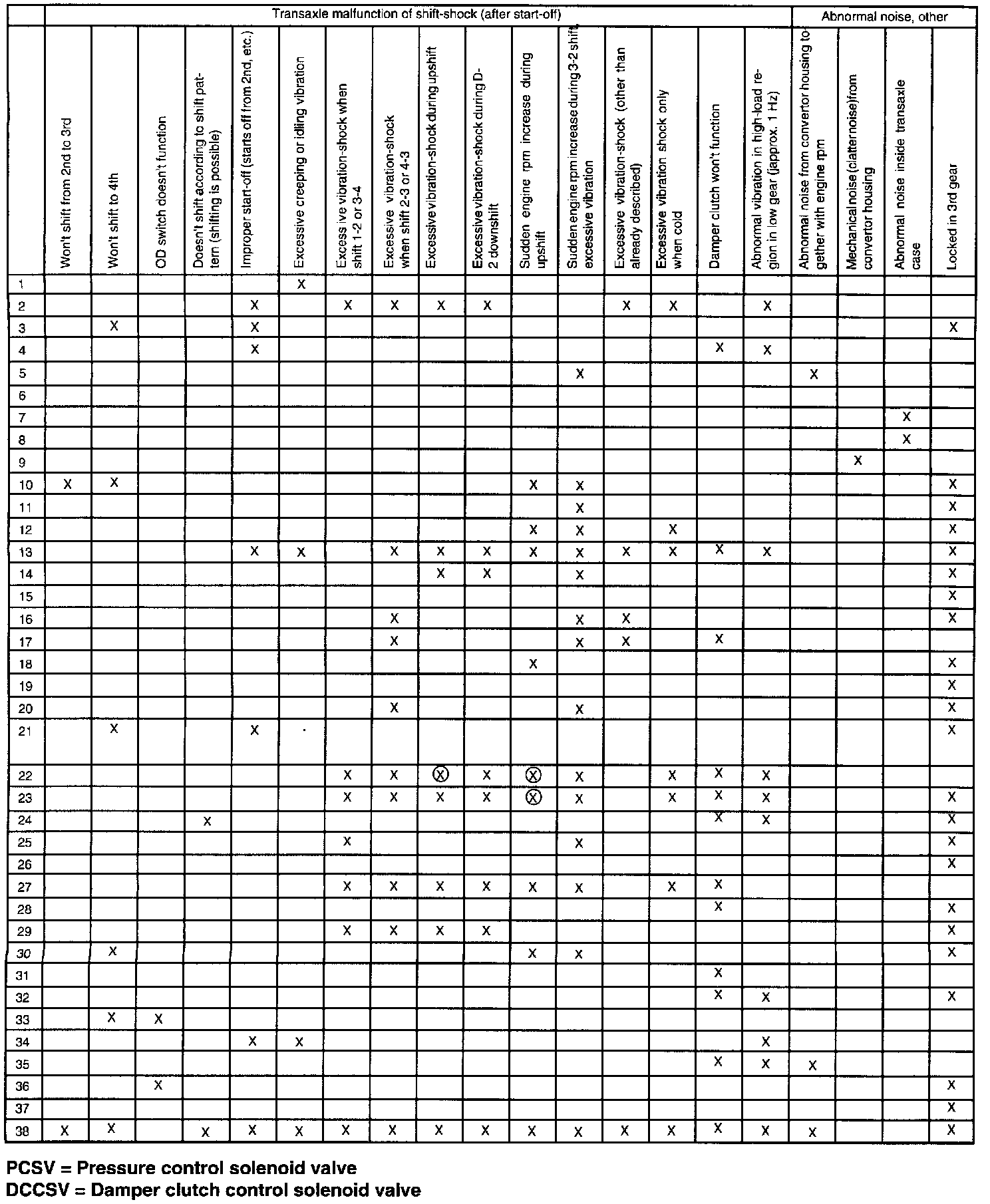

TROUBLESHOOTING GUIDE
Refer to the troubleshooting guide tables below for help in establishing inspection priorities.








NOTE:
- (X) indicates items of high priority during inspection.

ABBREVIATIONS:
- TPS = [1][2]Throttle Position Sensor
- SCSV = Shift Control Solenoid Valve.
- PCSV = Pressure control solenoid valve
- DCCSV = Damper clutch control solenoid valve
