Rear Wiper and Washer
1.
Remove the rear
wiper arm
assembly.
2.

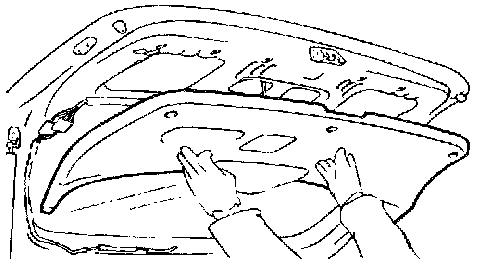

Remove the tailgate trim.
3.
Remove the rear wiper motor from the tailgate.
