Front Wiper and Washer

Check the switch for continuity between the terminals.








Wiper switch








Washer switch

If continuity is not as specified, replace the switch. Washer Motor

Washer Motor
1. With the washer motor connected to the washer tank, fill the washer tank with water.





2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively to see that the washer motor operates and water is ejected.

SERVICE ADJUSTMENT PROCEDURES

WIPER MOTOR

Speed operation check

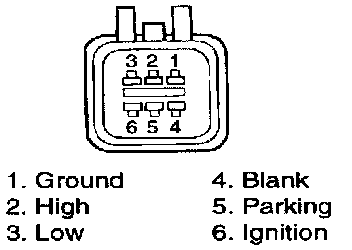

1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3.
3. Check that the motor operates at low speed.
4. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2.
5. Check that the motor operates at high speed.

Automatic stop operation check





1. Operate the motor at low speed.
2. Stop the motor operation anywhere except the off position by disconnecting terminal 3.
3. Connect terminals 5 and 3.
4. Connect the positive (+) lead from the battery to terminal 6 and ground terminal 1.
5. Check that the motor stops running at the off position.
