Intermittant Wiper System Operation

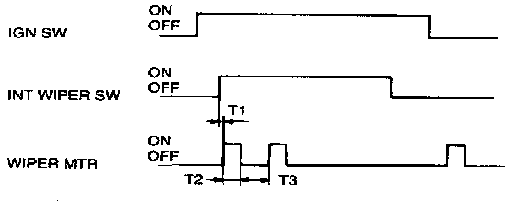

Intermittent Wiper





1. Time specification
T1 : 0.15 sec. MAX.
T2 : 0.7 sec. (Time for wiper motor 1 rotation)
T3 : 1.5 Sec. - 0.7 sec. (VR = 0 kohms) 10.5 Sec. - 1sec.
(VR = 50 kohms)

Wiper motor related to washer S/W





1. Time specification
T1 : 0.5 sec.
T2 : 2.5 - 3.8 sec.
