Rear Wiper and Washer

WIPER MOTOR





1. Remove the connector from the rear wiper motor.
2. Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 1.
3. Check that the motor operates.

WASHER MOTOR





1. With the washer motor installed to the washer tank, fill the washer tank with washer fluid.
2. Attach the positive (+) lead from the battery to terminal 2, and negative (-) lead to terminal 1.
3. Check that the washer motor runs and washer fluid is ejected.

SWITCH





1. Remove the side facia Panel.

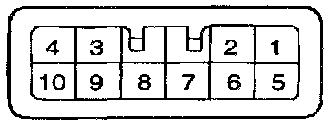

2. Disconnect the switch connector.
3. Remove the rear wiper and washer switch from the facia panel.

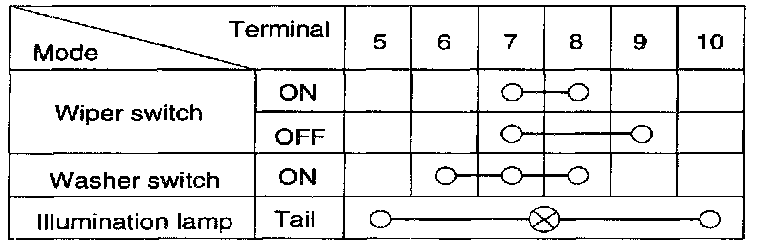

4. Check for continuity between terminals.
