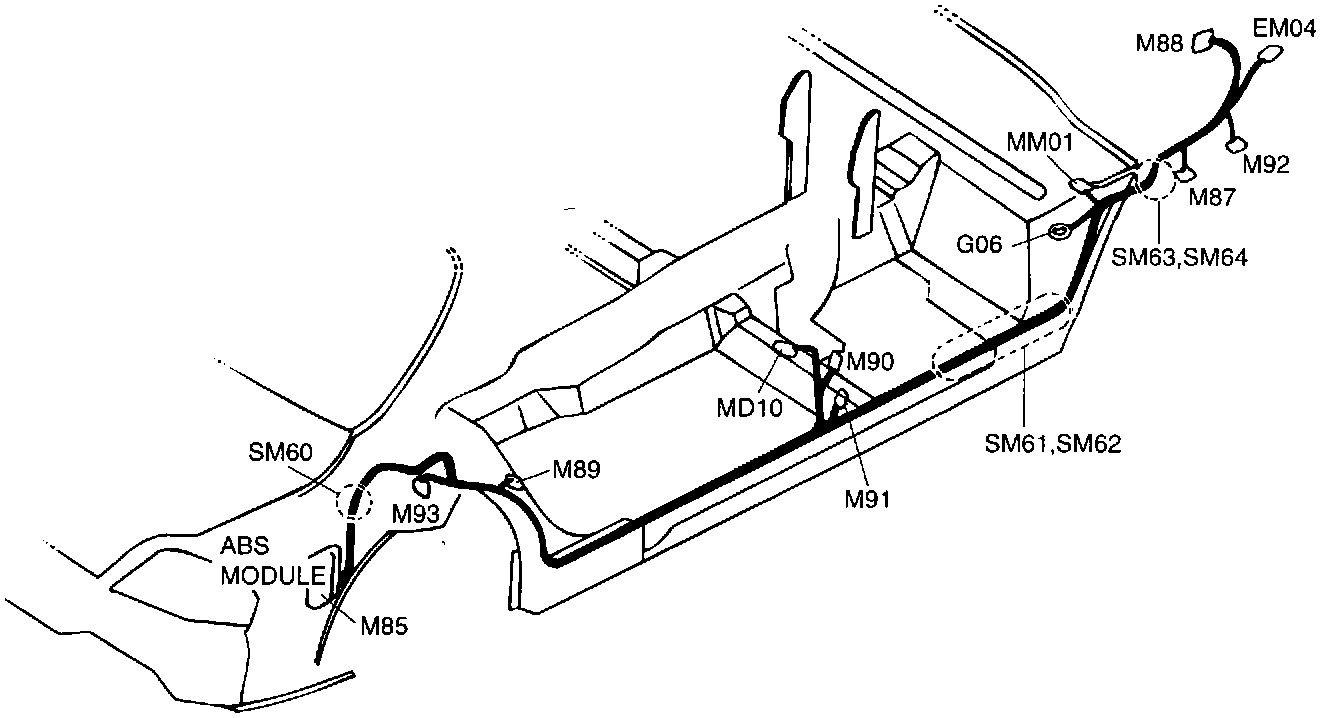

Main Harness (ABS)

Main Harness (ABS):

M85 ABS control module
M87 ABS relay box
M88 ABS modulator
M89 Right rear door switch
M90 Right front door switch
M91 Passenger tension reducer
M92 Right front wheel sensor
M93 Right rear wheel sensor
EM04 Connection with ENGINE harness
MD10 Connection with RH REAR DOOR harness
MM01 Connection with MAIN harness
GO6 Ground
