Daytime Running Lamp: Service and Repair

OVERHEAD CONSOLE LAMP (WITH SUNROOF)




1. Disconnect the battery negative terminal.
2. Using a (-) driver, detach the map lamp lens.




3. Detach the lamp assembly from the head lining after removal of the screws (2EA).
4. Disconnect the connector from the roof harness
5. Installation is the reverse order of removal procedure.

MAP LAMP (WITHOUT SUNROOF)




1. Disconnect the battery negative terminal.

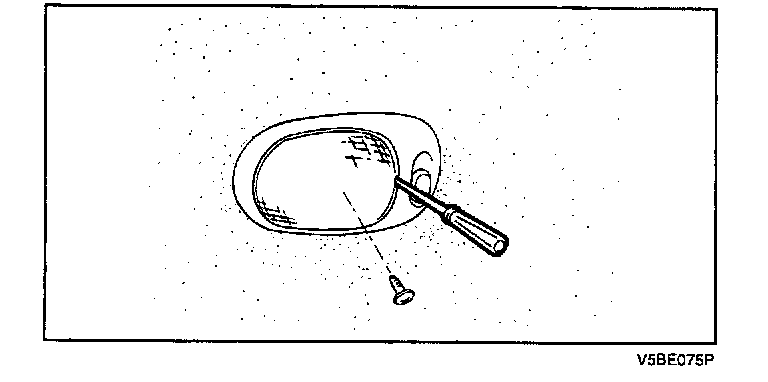

2. Using a (-) driver, detach the map lamp lens.
3. Detach the lamp assembly from the head lining after removal of the screws (2EA).
4. Disconnect the connector from the roof harness.
5. Installation is the reverse order of removal procedure.

ROOM LAMP (WITHOUT SUNROOF)




1. Using a (-) driver, detach the room lamp lens.
2. Detach the lamp assembly from the head lining after removal of the screws (1EA).
