System Diagram

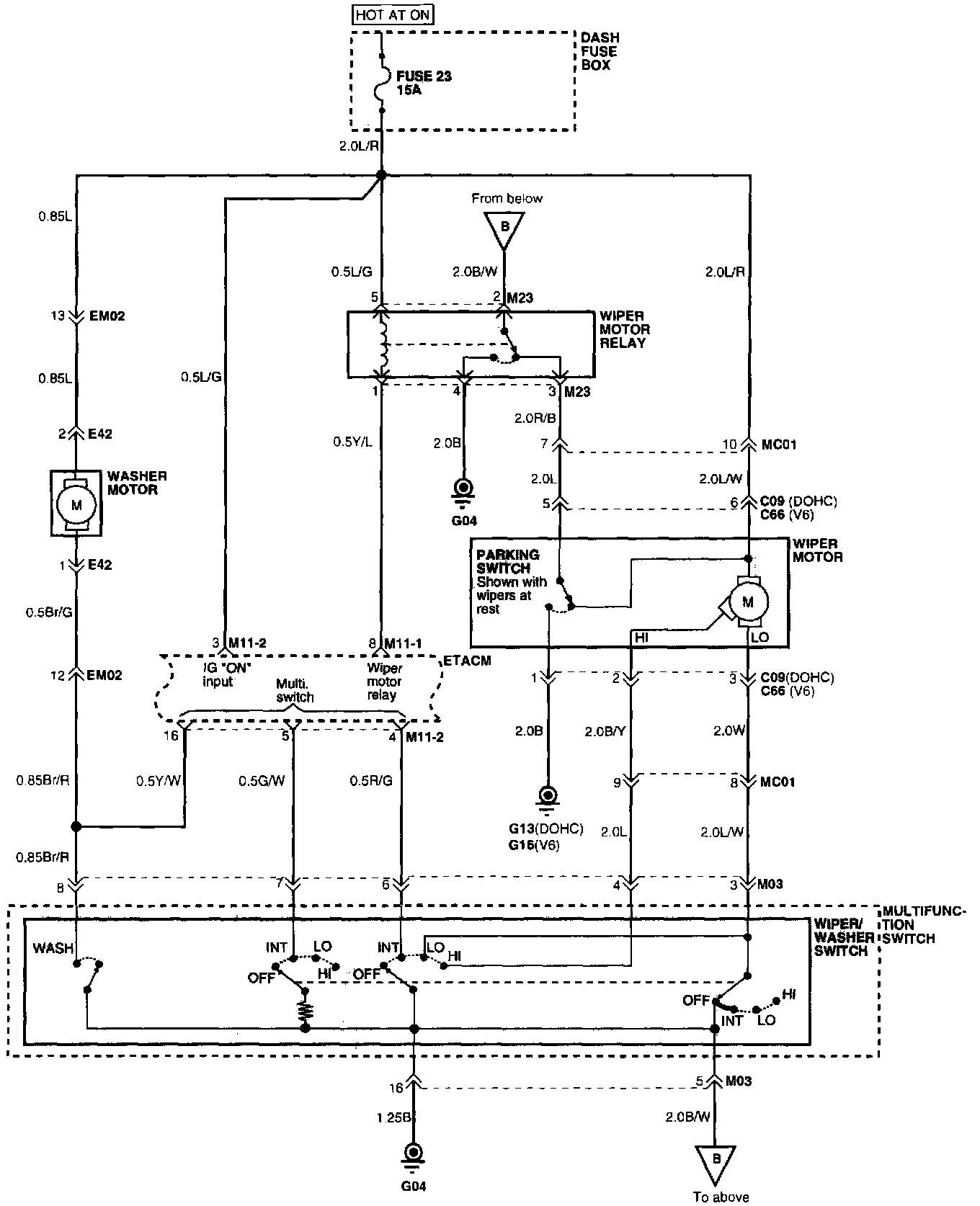

ETACS (Electronic Time & Alarm Control System) (Part 1 Of 4):

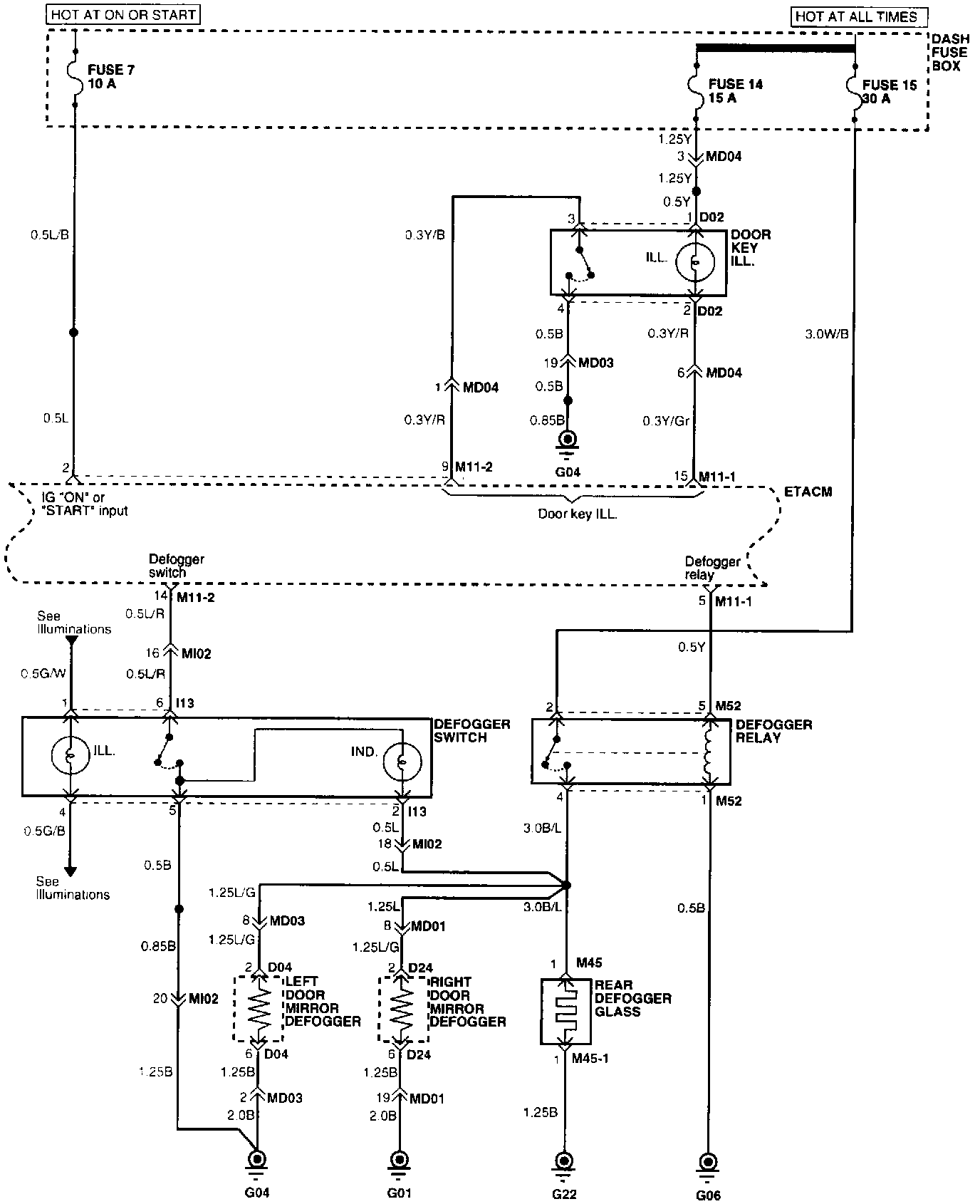

ETACS (Electronic Time & Alarm Control System) (Part 2 Of 4):

ETACS (Electronic Time & Alarm Control System) (Part 3 Of 4):

ETACS (Electronic Time & Alarm Control System) (Part 4 Of 4):
