Blower Motor

Blower Control (Manual A/C Only):



Blower And A/C Compressor Controls (Automatic) (Part 1 Of 3):

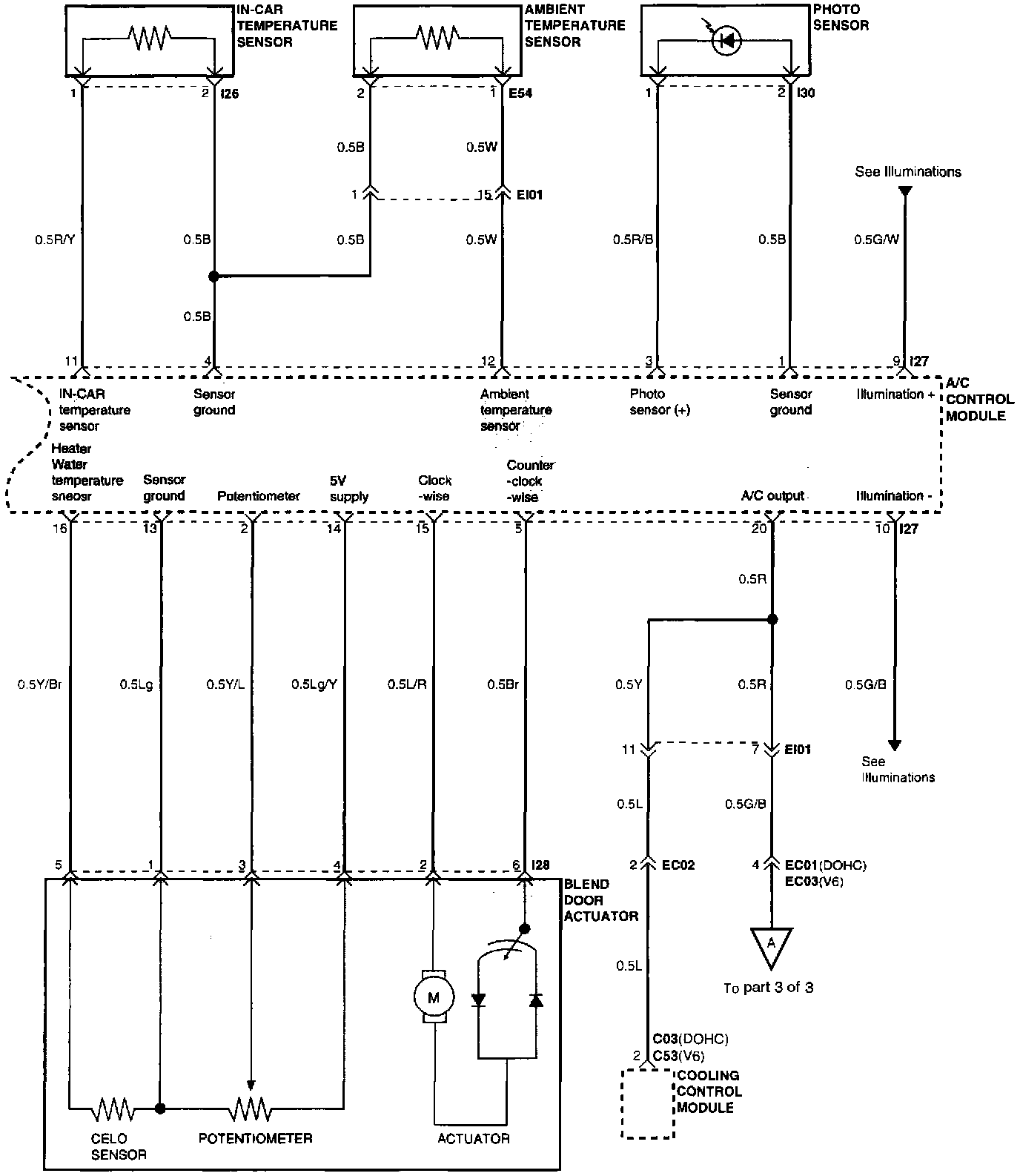

Blower And A/C Compressor Controls (Automatic) (Part 2 Of 3):



Blower And A/C Compressor Controls (Automatic) (Part 3 Of 3):
