Control Harness

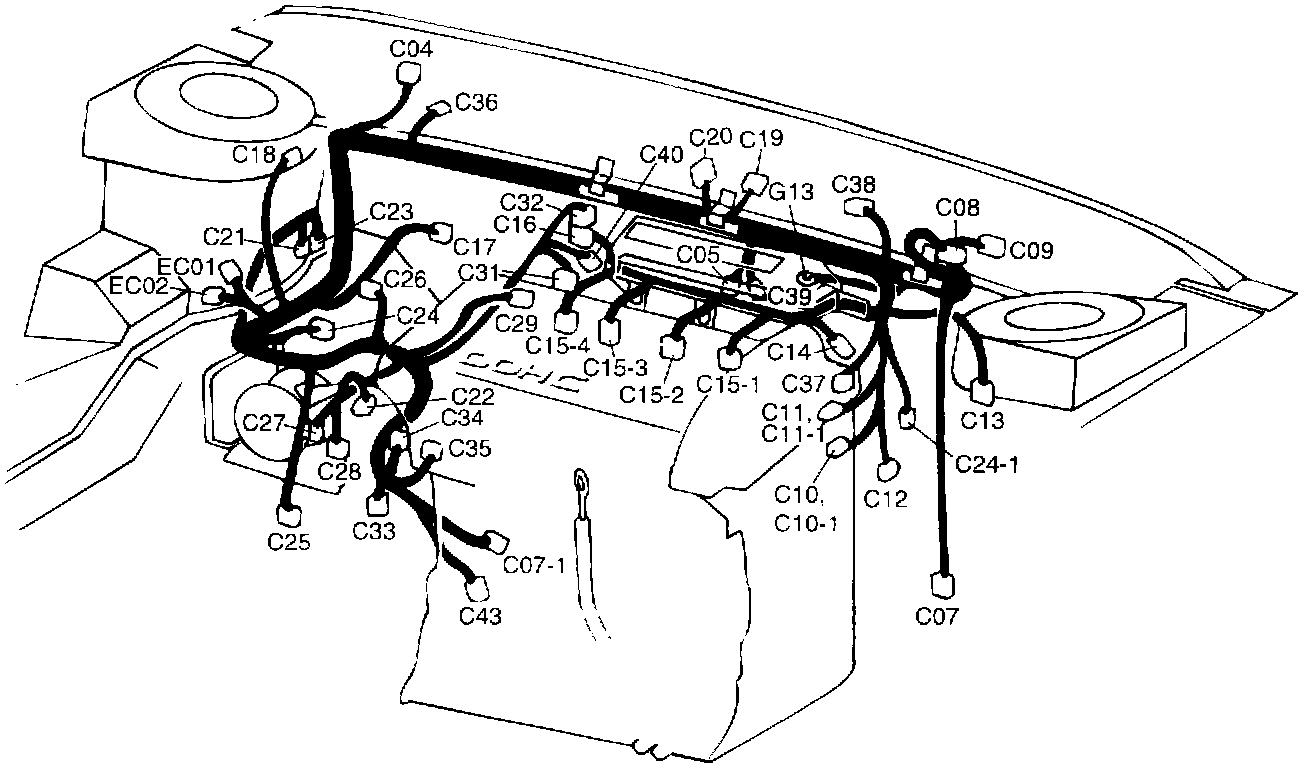

Control Harness:

C04 Pre-excitation resistor
C05 EGR temperature solenoid
C06 Purge solenoid (Except NAS)
C07 Front heated oxygen sensor (EC, CAL)
C07-1 Front heated oxygen sensor (Except EC and CAL)
C08 A/C pressure switch (Low)
CO9 Wiper motor
C10 Power transistor (NAS, EC)
C10-1 Power transistor (Except NAS and EC)
C11 Ignition coil (Except NAS and EC)
C11-1 Ignition coil (NAS, EC)
C12 A/C compressor
C13 Variable resister (Leaded)
C14 Noise filter (Except NAS and EC)
C15-1 Injector
C15-2 Injector
C15-3 Injector
C15-4 Injector
C16 Throttle position sensor
C17 Brake fluid level sensor
C18 Cruise actuator
C19 Fuel pump checker
C20 Ignition control adjusting connector
C21 Kick down servo switch
C22 Oil temperature sensor
C23 Pulse generator
C24 Crankshaft position sensor (Except NAS)
C24-1 Crankshaft position sensor (NAS)
C25 Back up switch
C26 Volume air flow sensor
C27 Transaxle range switch
C28 Transaxle valve body
C29 Speed sensor
C30 Idle switch (Except NAS and EC)
C31 EGR sensor
C32 Idle speed control motor
C33 Thermo sensor (115°C)
C34 Engine coolant temperature sender
C35 Engine coolant temperature sensor
C36 Burglar alarm siren (Except NAS)
C37 Camshaft position sensor (NAS)
C38 Manifold differential pressure sensor (NAS)
C39 Purge solenoid (NAS)
C43 Rear heated oxygen sensor (CAL)
EC01 Connection with ENGINE harness
EC02 Connection with ENGINE harness
G13 Dash ground
