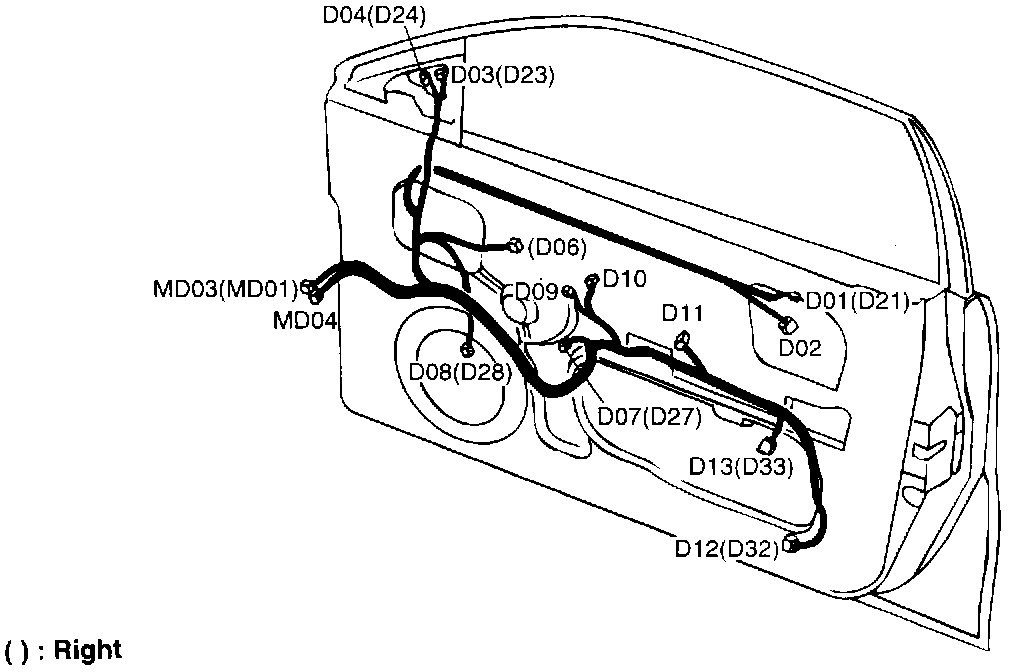

Door Harness (Front)

Door Harness (Front):

D01 Door unlock switch (Left) (With B/Alarm)
D21 Door unlock switch (Right) (With B/Alarm)
D02 Door key hole ILL. lamp (Without B/Alarm)
D03 Tweeter speaker (Left)
D23 Tweeter speaker (flight)
D04 Outside mirror motor & Defogger (Left)
D24 Outside mirror motor & Defogger (Right)
D06 Power window switch (Right)
D07 Power window motor (Left)
D27 Power window motor (Right)
D08 Door speaker (Left)
D28 Door speaker (Right)
D89 Power window switch (Left)
D10 Power door mirror switch (Left)
D11 Trunk lid opener switch (Left)
D12 Door actuator (Left)
D32 Door actuator (Right)
D13 Door lamp (Left)
D33 Door lamp (Right)
MD01 Connection with MAIN harness (Right)
MD03 Connection with MAIN harness (Left)
MD04 Connection with MAIN harness (Left)
