Harness Layout

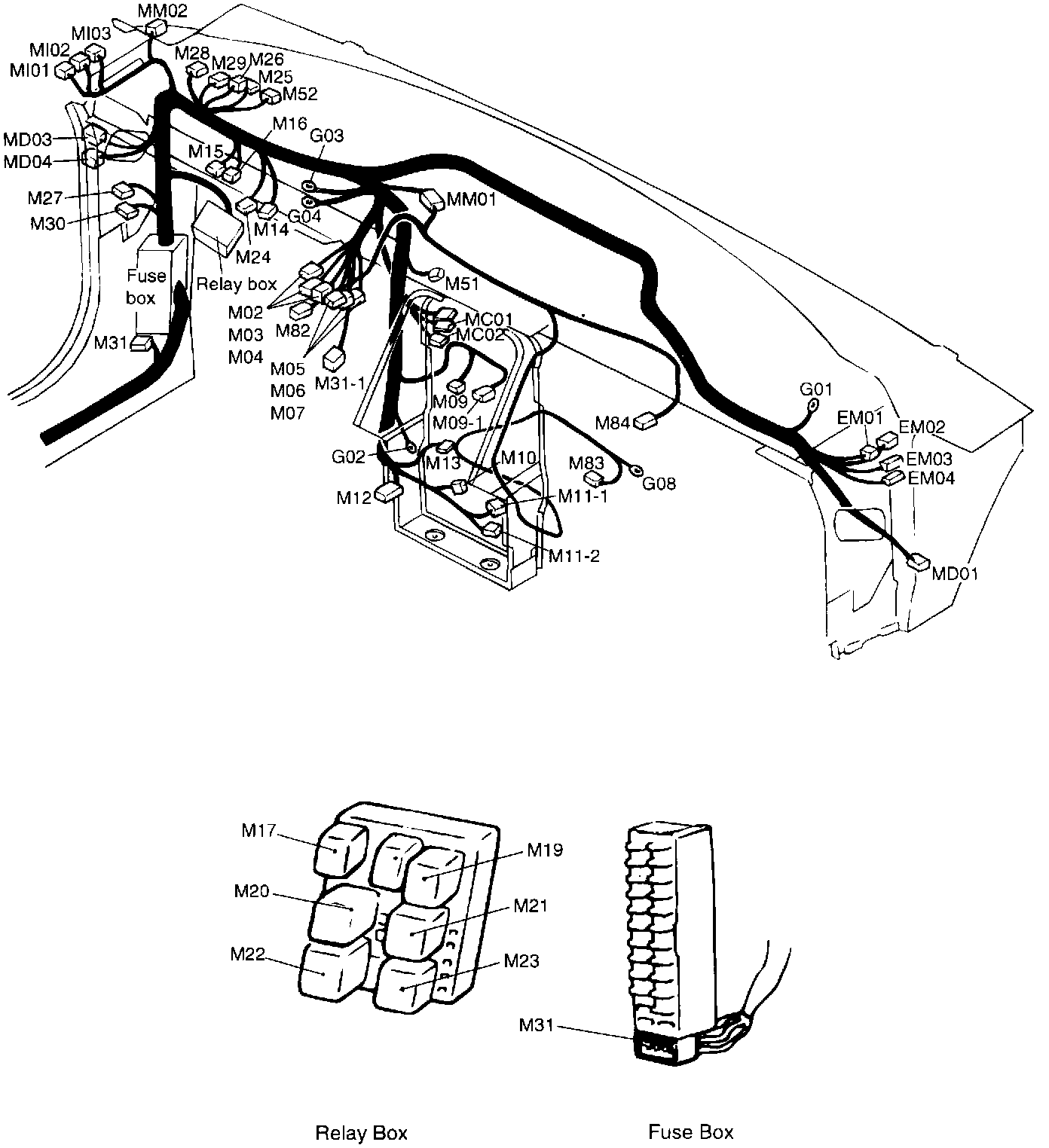

Main Harness (1):

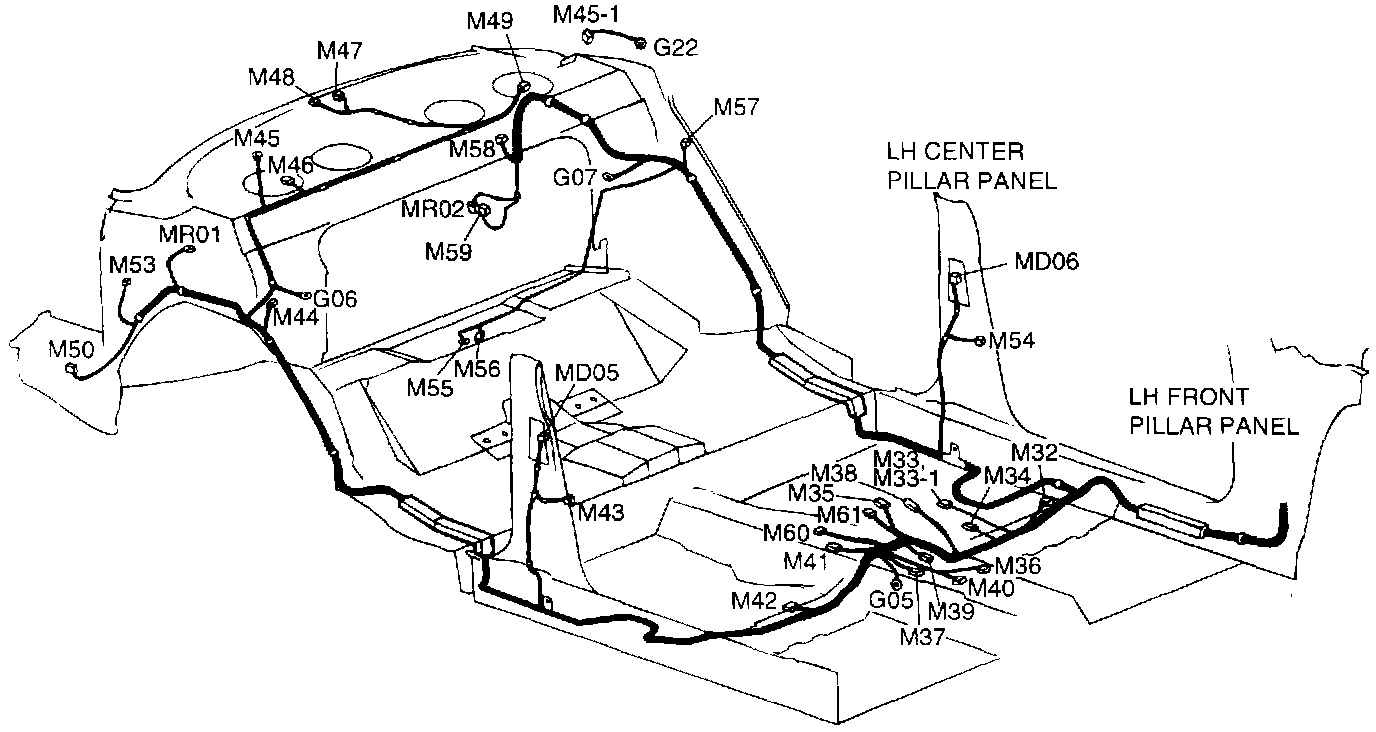

Main Harness (2):

M02 Multifunction switch
M03 Multifunction switch
M04 Multifunction switch
M05 Ignition key lock solenoid (A/T)
M06 Door warning & IG key ILL. switch (ETACM)
M07 Ignition switch
M08 Audio remote control switch (Left)
M08-1 Slip ring
M08-2 Horn switch
M05-3 Audio remote control switch (Right)
M09 Audio
M09-1 Audio remote control switch
M10 A/T shift lock control module
M11-1 ETACM
M11-2 ETACM
M12 Cigarette lighter
M13 Cruise control module
M13-1 Cruise control module extension
M14 Stop lamp switch
M15 Starter clutch pedal position switch (M/T)
M16 Cruise clutch pedal position switch (M/T)
M17 Power window relay
M19 Horn relay
M2O Fog lamp relay
M21 Burglar alarm relay
M22 Flasher unit
M23 Wiper relay (With ETACM)
M24 ABS control module
M25 Power door lock relay (With ETACM)
M26 Seat belt timer (Without ETACM)
M27 Intermittent wiper relay (Without ETACM)
M28 Chime bell (Without rear fog lamp)
M29 Acoustic warning
M30 Keyless entry checker (B/Alarm)
M31 Data link connector (Except NAS)
M31-1 Data link connector (NAS)
M51 Head amplifier
M52 Rear defogger relay (With ETACM)
M82 Contact coil (Air Bag)
M83 SRS control module (Air Bag)
M84 Passenger air bag
MC01 Connection with CONTROL harness
MC02 Connection with CONTROL harness
MD01 Connection with DOOR harness (Front right)
MD03 Connection with DOOR harness (Front Left)
MD04 Connection with DOOR harness (Front Left)
EM01 Connection with ENGINE harness
EM02 Connection with ENGINE harness
EM03 Connection with ENGINE harness
EM04 Connection with ENGINE harness
MI01 Connection with INSTRUMENT harness
MI02 Connection with INSTRUMENT harness
MI03 Connection with INSTRUMENT harness
MM01 Connection with AIR BAG harness
MM02 Connection with ROOF harness
G01 Deck ground
G02 Control support panel ground
G03 ABS ground
G04 Deck ground
G08 Air bag ground
M32-1 Front power seat switch
M33 Seat belt switch (NAS)
M33-1 Front tension reducer switch (Except NAS)
M34 Front seat warmer (Left)
M35 Keyless entry control module (B/Alarm)
M36 Front seat warmer switch (Left)
M37 Power/Normal switch (A/T)
M38 Heated oxygen sensor (Rear)
M39 Parking brake switch
M40 Front seat warmer switch (Right)
M41 A/T shift lever
M42 Front seat warmer (Right)
M43 Front door switch (Right)
M44 Rear door switch (Right)
M45 Rear defogger glass (+)
M45-1 Rear defogger glass (-)
M46 Rear speaker (Right)
M47 High mounted stop lamp
M48 Trunk room lamp
M49 Rear speaker (Left)
M50 ABS wheel sensor (Rear Right)
M53 Rear defogger timer (Without ETACM)
M54 Front door switch (Left)
M55 Fuel pump sensor
M56 Fuel pump motor
M57 Rear door switch (Left)
M58 Power antenna
M59 ABS wheel sensor (Rear Right)
M60 Key inter lock switch (NAS With AK)
M61 Immobilizer control module
MD05 Connection with DOOR harness (Rear right)
MD06 Connection with DOOR harness (Rear left)
MR01 Connection with TRUNK LID harness
MR02 Connection with TRUNK ROOM harness
C05 Console ground
C06 Rear ground
C07 Rear ground
C22 Rear defogger glass ground
