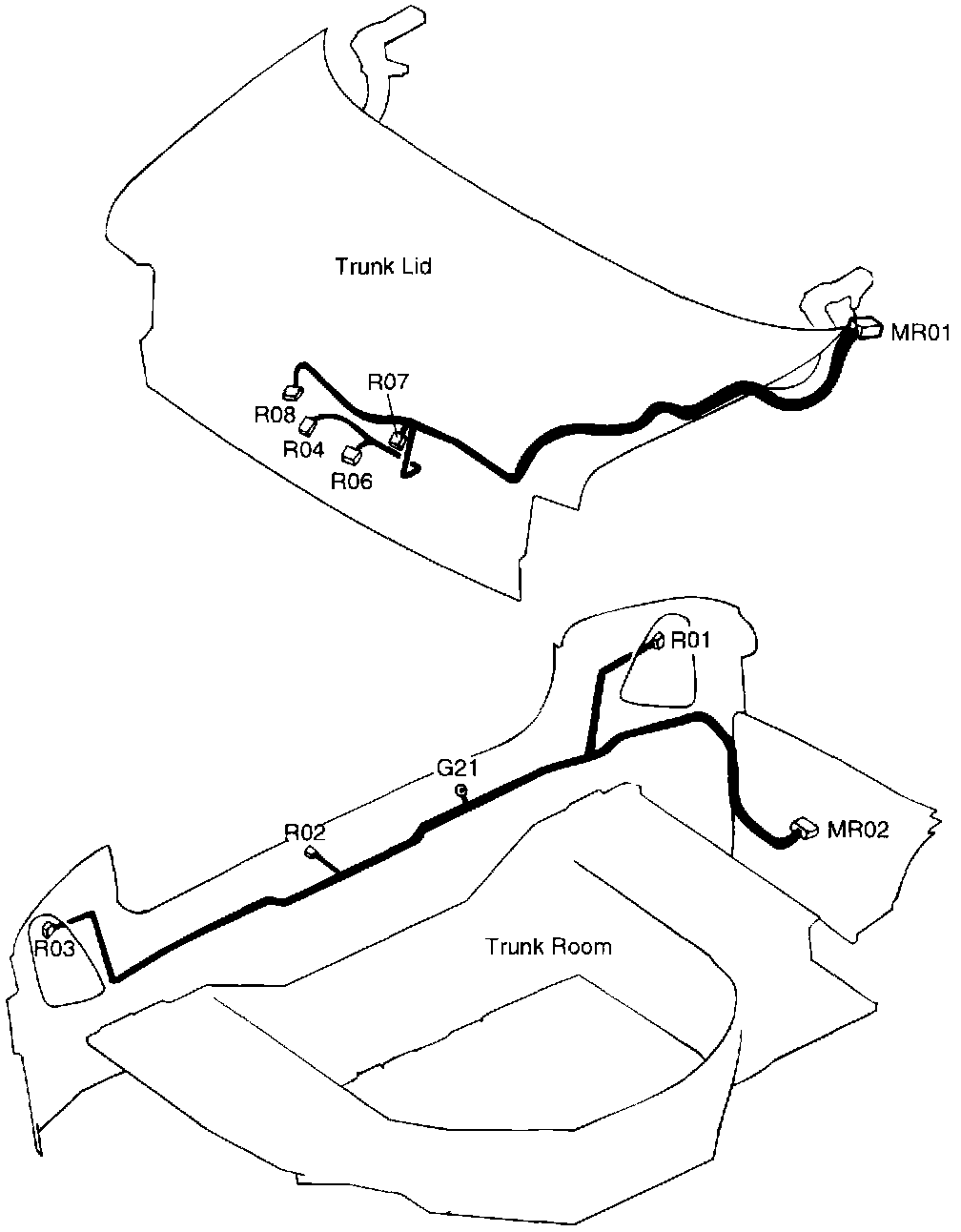

Trunk Room and Trunk Lid Harness

Rear Harness (Trunk Lid & Trunk Room):

R01 Rear combination lamp (Left)
R02 Trunk room lamp switch
R03 Rear combination lamp (Right)
R04 Trunk unlock switch (With B/Alarm)
R06 Trunk lid solenoid
R07 License lamp (Right)
R08 License lamp (Left)
MR01 Connection with MAIN harness
MR02 Connection with MAIN harness
G21 Trunk room ground
