Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

The sensor contains a thermistor which measures the temperature of the outside aid.

CHECKING
1. Disconnect battery terminal (-).
2. Detach the harness of the ambient temperature sensor.

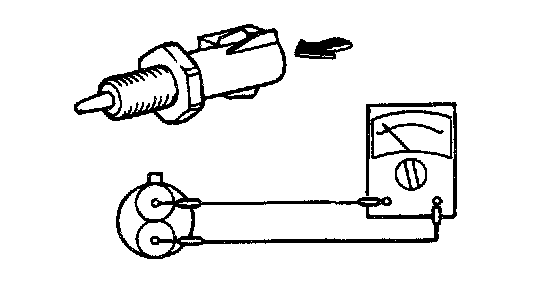

3. Measure the resistance as shown.

Resistance 20° C : 37.3 ± 2.25 Ohms
