Condenser HVAC: Service and Repair

REMOVAL
1. Discharge the refrigerant.
2. Drain the coolant.

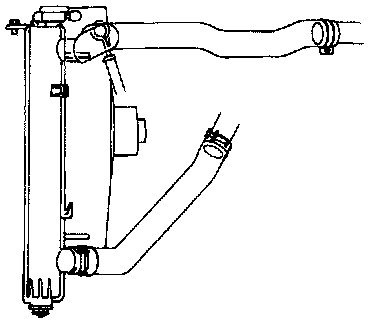

3. Remove the radiator inlet and outlet hoses.





4. Remove the radiator assembly





5. Disconnect the discharge hose and the liquid tube.





6. Remove the condenser assembly.

INSTALLATION
Installation is in the reverse of removal procedures.

NOTE: When a condenser is replaced, it will be necessary to replace the accumulator
