Discharge Air Temperature Sensor / Switch: Testing and Inspection

It perceives the passenger compartment temperature, changes the resistance value, and enters the corresponding voltage into the automatic temperature control module.

CHECKING
1. Disconnect battery terminal (-).





2. After removing the floor console assembly, remove the center facia panel.
3. Remove the row clash pad center panel.

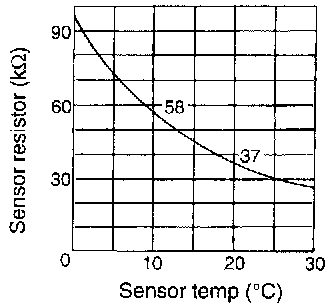

4. Measure the resistance and the temperature.

25° C : 30 ± 0.36 K Ohms
