Home >> Hyundai >> 1997 >> Sonata GL L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

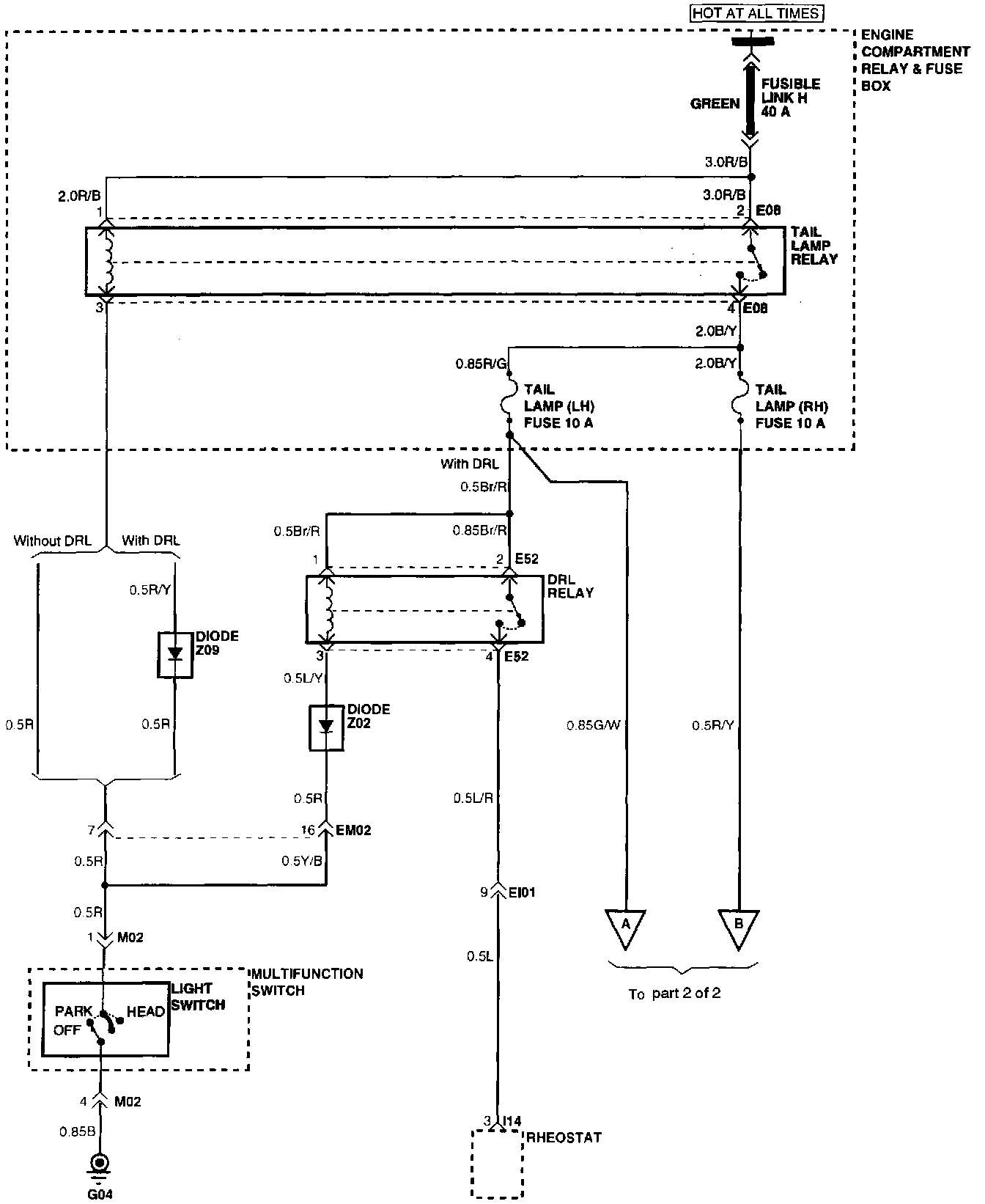

Tail, Parking And License Lamps (Part 1 Of 2):

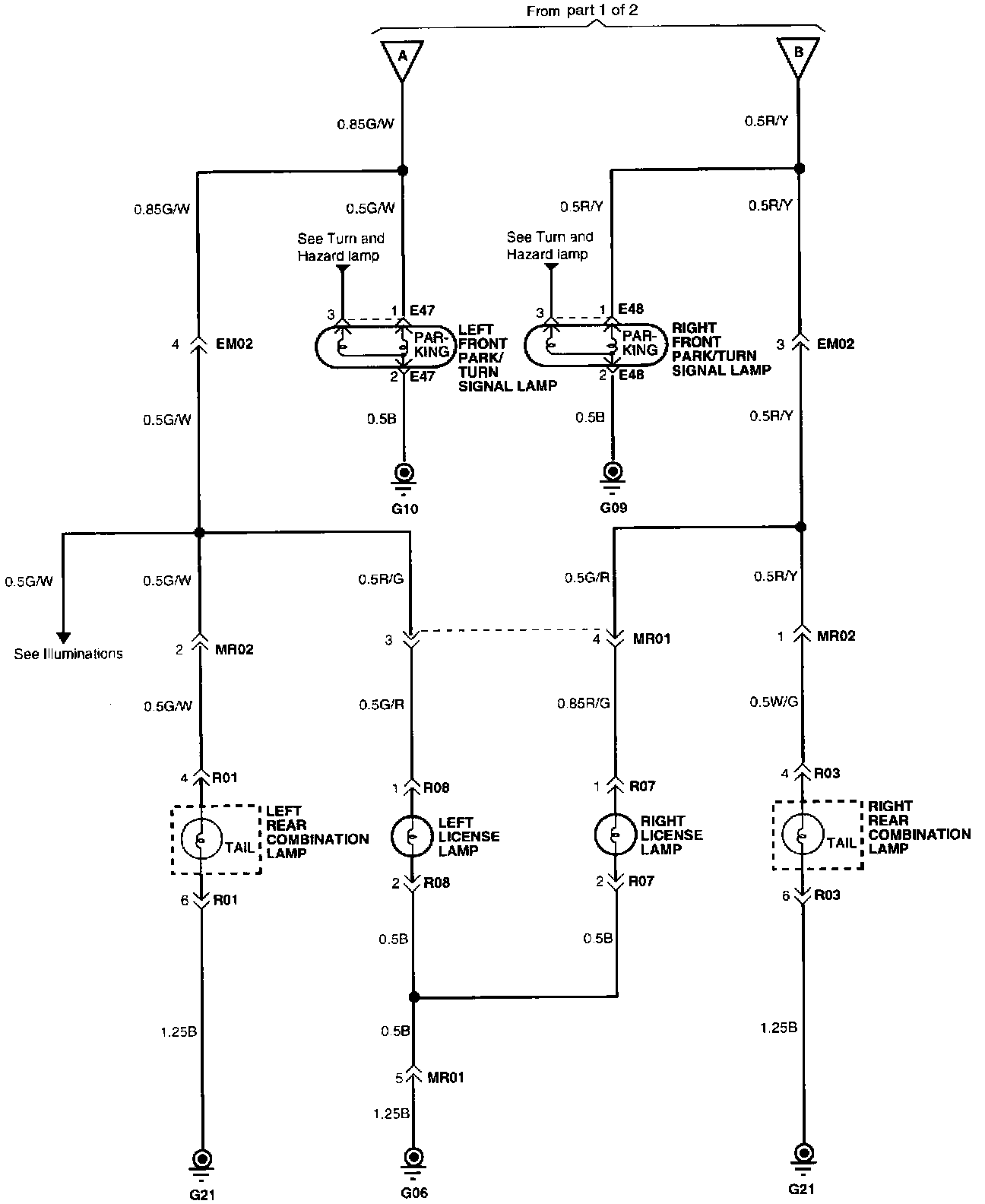

Tail, Parking And License Lamps (Part 2 Of 2):
