Tail Lamp: Service and Repair

1. Disconnect the negative terminal from the battery.





2. Open the trunk lid.

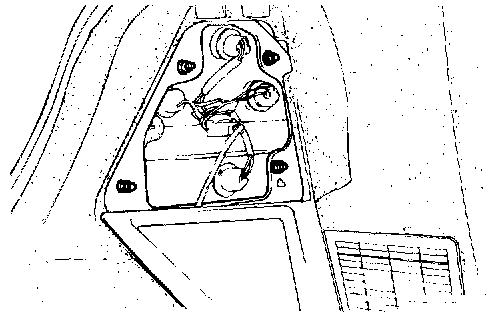

3. With rear luggage cover opened, loosen the 4 mounting nuts.

Tightening torque of rear combination lamp mounting nut : 2.0-2.5 Nm (2.0-2.5 kg.cm, 1.5-1.8 lb.ft)





4. After disconnect the connector, remove the lamp assembly.
5. Installation is the reverse order of removal.
