Drive Belt: Testing and Inspection

DRIVE BELT TENSION
1. Check that the belts are not damaged and fit properly into the pulley grooves.

CAUTION: When adjusting the V-ribbed belt, check that the V-ribs are properly aligned.

NOTE:
- If noise or slippage is detected, check the belt for wear, damage, or breakage on the pulley contact surface, and check the pulley for scoring.
- Check for the proper belt deflection measurement.

2. Apply 100 N (22 Lbs.) force to the belt back midway between the pulleys as shown in the illustration, measure the amount of deflection with a tension gauge.

NOTE:
- The belt tension must be measured between the specified pulleys.
- When a new belt is installed, adjust the tension to the center of the standard range indicated under "New." Let the engine idle for 5 minutes or more, and check the standard value indicated under "Inspection."
- When adjusting a used belt or a newly installed belt after 5 minutes or more of operation, refer to the standard value indicated under "Used."
- Refer to the standard value indicated under "Inspection" for periodic inspections.

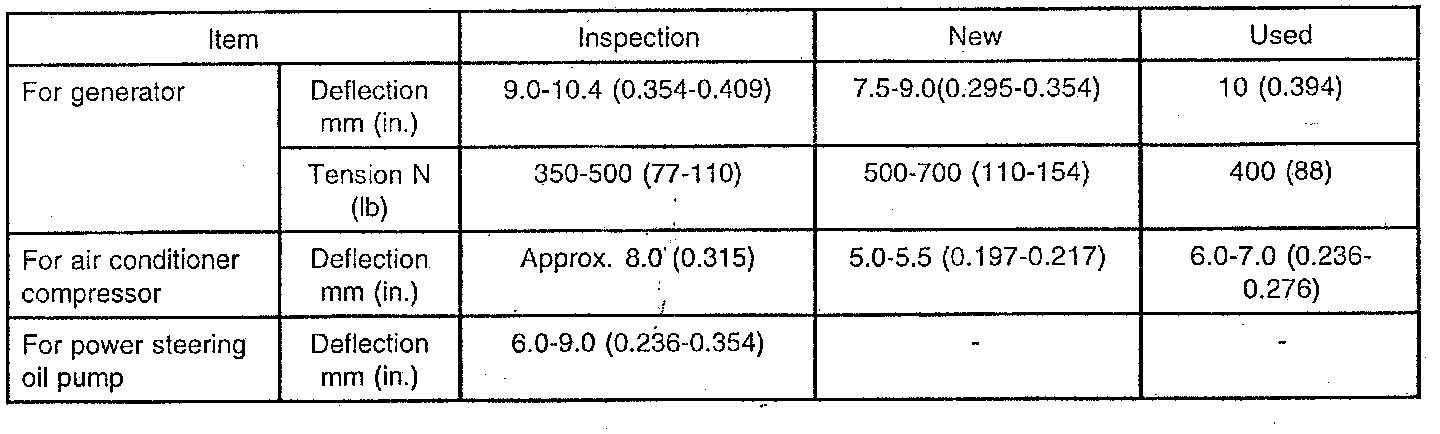

Specification Table

Belt Adjustment Specifications:

Type A Tension Gauge






Do not let the dial section of the tension gauge contact other objects during measurement.

Type B Tension Gauge






1. When measuring, turn the reset button in the direction of the arrow to set the gauge needle to the RESET position.
2. When the tension gauge is removed from the belt, the needle will still indicate the tension. Read the tension after removing the gauge.
