SRS - Harness Checker, Test Terminals Correction
Group: BODY ELECTRICALNumber: 97-90-008
Date: APRIL, 1997
Model: ALL 1997 MODELS
Subject:
SRS HARNESS CHECKER TEST TERMINALS
(SHOP MANUAL CORRECTION)
DESCRIPTION:
The Supplemental Restraint System (SRS) harness checker test terminals shown in the Troubleshooting section in all 1997 Hyundai Shop Manuals are incorrect.

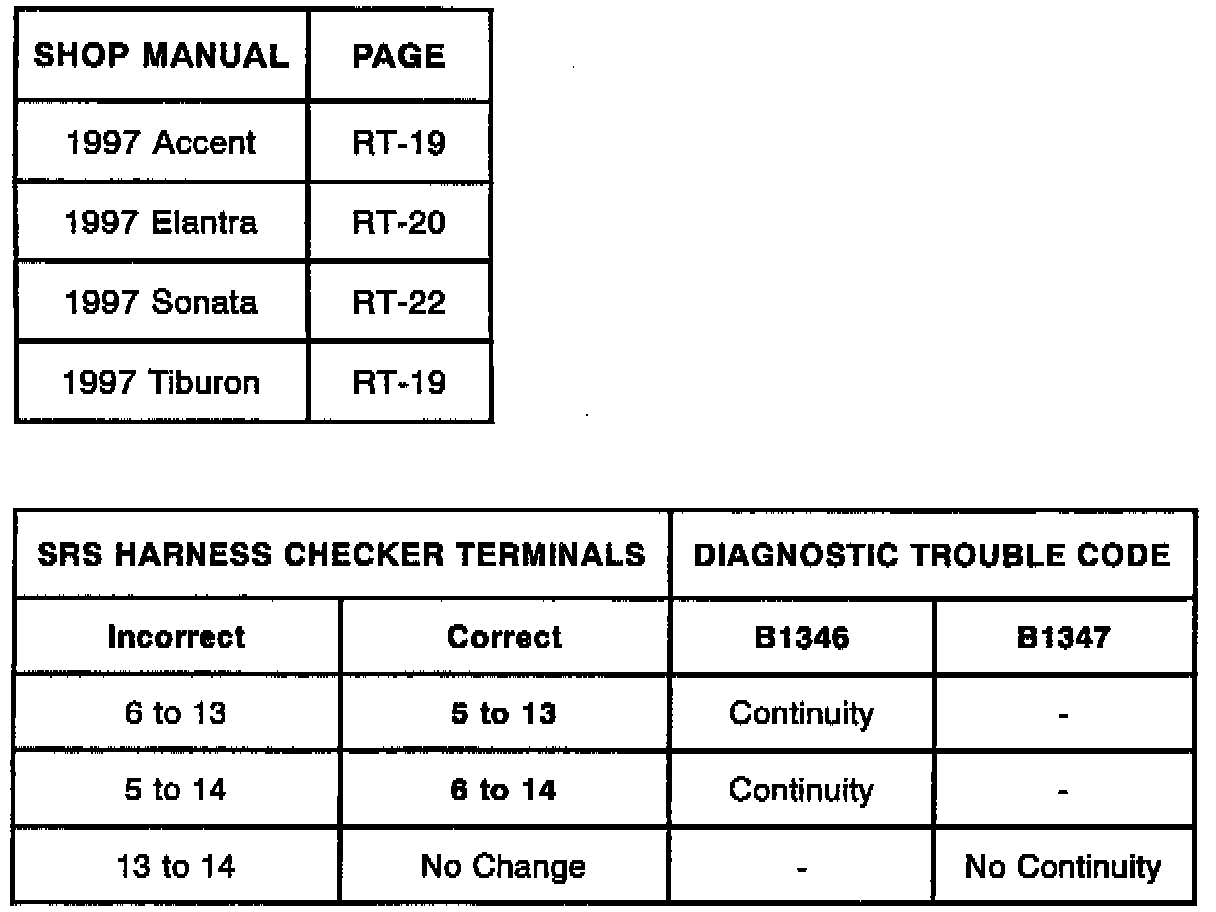

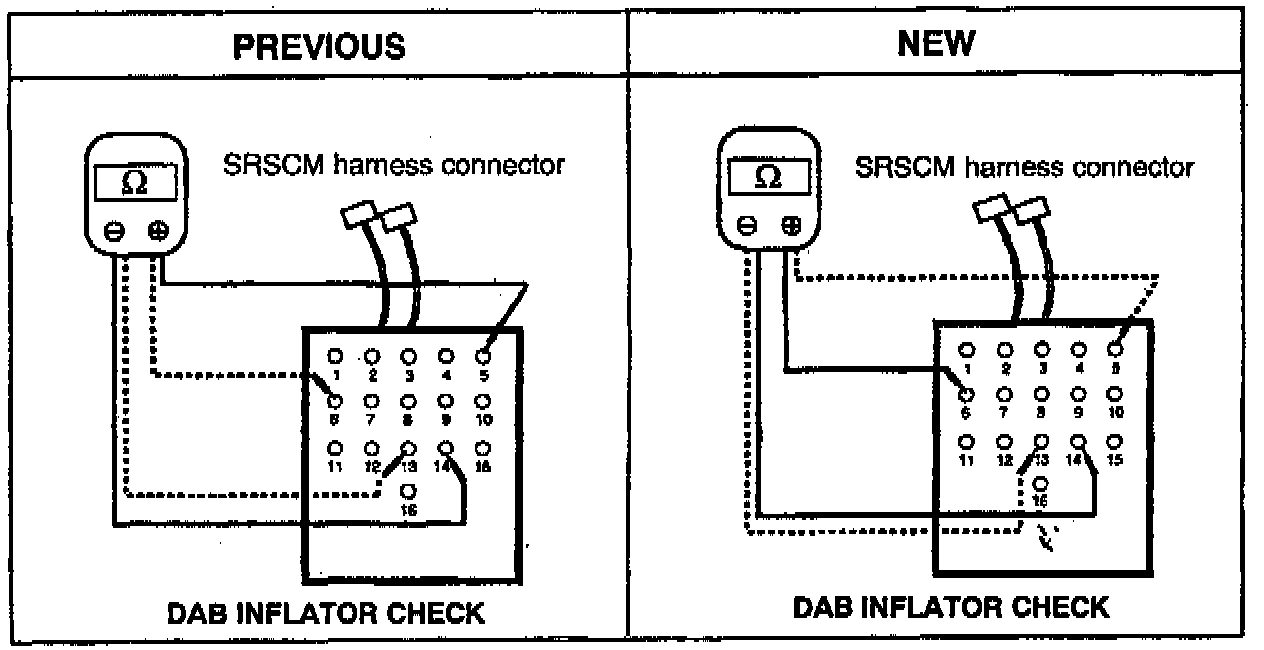

The correct SRS harness checker test terminals are shown below.
Please make the correction as indicated, and write the TSB number at the bottom of the pages in the appropriate 1997 Shop Manuals for future reference.
