Wiper and Washer Systems: Service and Repair

HINT: When removing the wiper motor only, it can be done by steps 5 to 7.

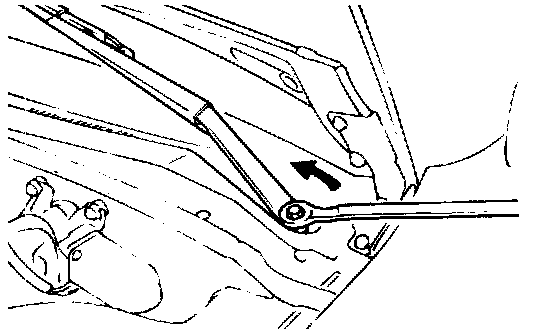

1. Remove the wiper arm mounting nut.

NOTE: Care must be taken not to scratch the engine hood.

2. Remove wiper arm and blade assembly.

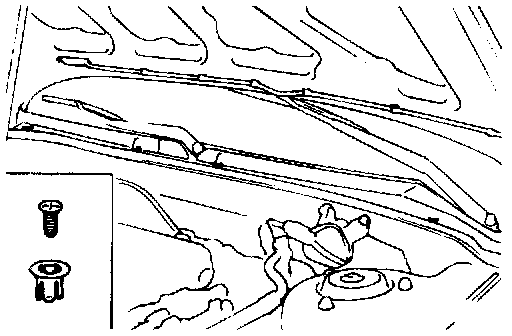

3. Remove the cowl top sealing cap.
4. Remove the cowl top cover.

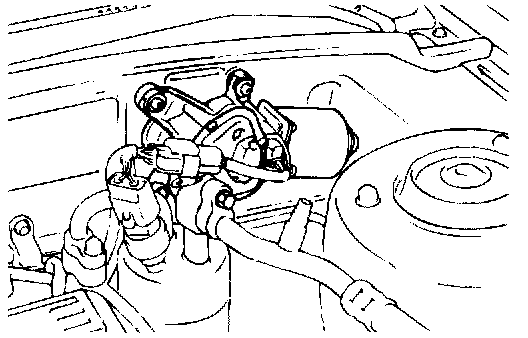

5. Remove the wiper motor connector.
6. Remove the wiper motor mounting bolt.

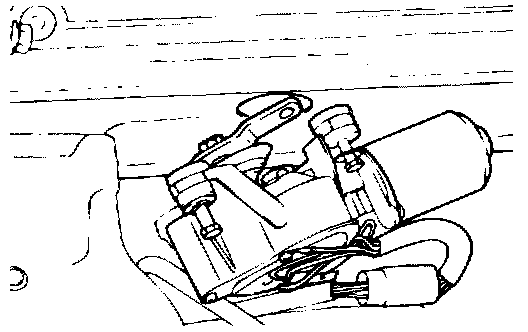

7. Disconnect the motor from the link and remove the motor assembly.





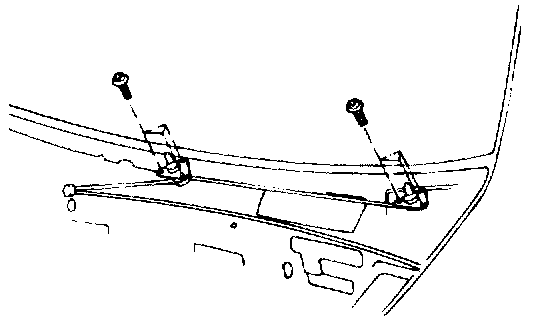

8. Remove the wiper link mounting bolt.
9. Take out wiper link assembly from the cowl top panel.
