Windshield Washer Motor: Testing and Inspection

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

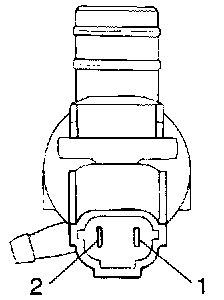

2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively to see that the washer motor runs and water is pumped.
