Wiper Switch: Testing and Inspection

Check the switch for continuity between the terminals.








If continuity is not as specified replace the switch.

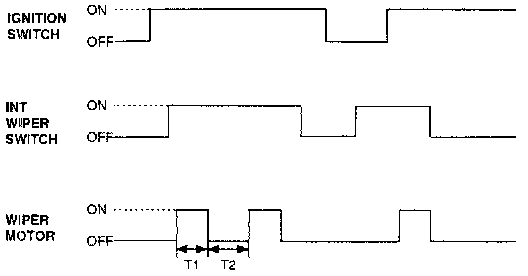

1. Time specification
- T1 : Max. 0.7 sec.
- T2 : 1.5 ± 0.7 sec. (at VR=0 K Ohms)
- T2 : 10.5 ± 3 sec. (at VR=50 K Ohms)
2. Variable resistance (VR) : 0 Ohms - 50 K Ohms
