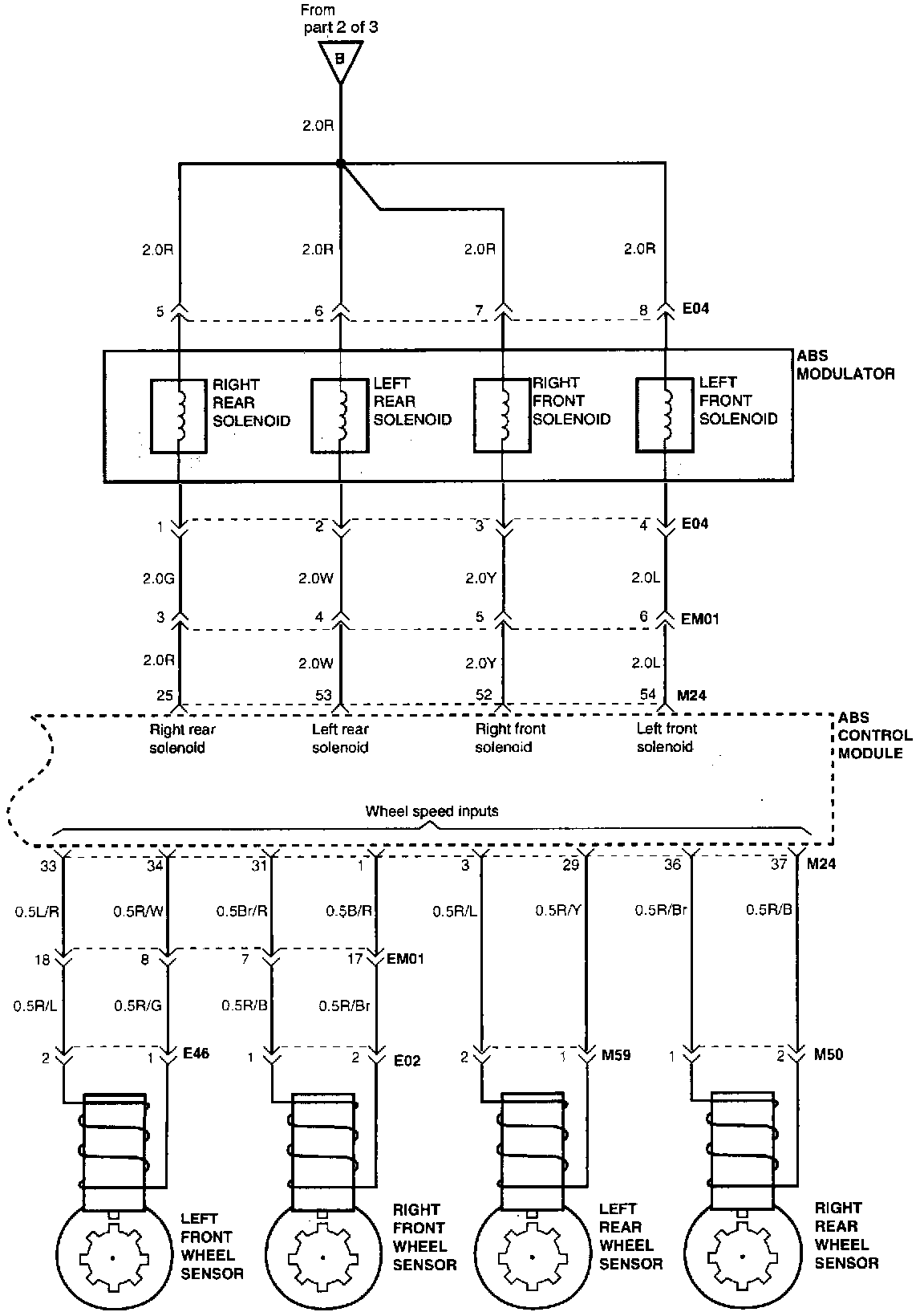

Anti-Lock Brake System (ABS) (Part 1 Of 3):
Anti-Lock Brake System (ABS) (Part 2 Of 3):
Anti-Lock Brake System (ABS) (Part 3 Of 3):
