Control Harness

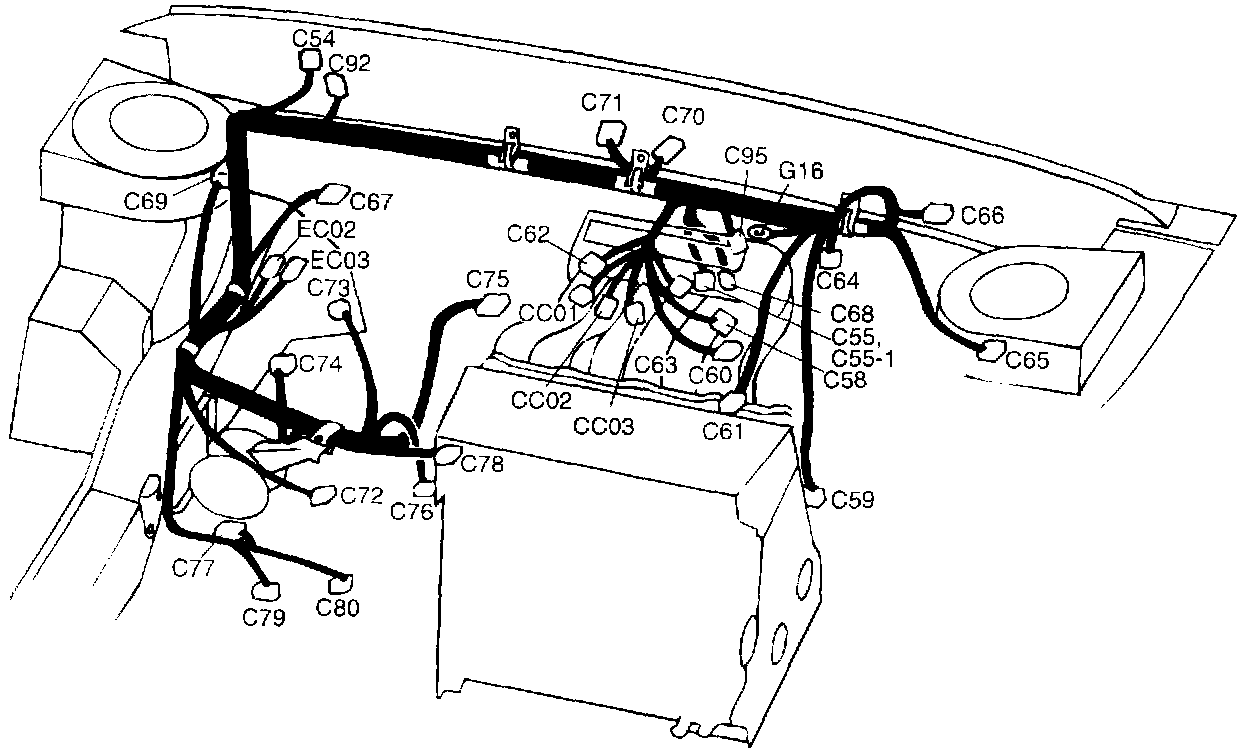

Control Harness:
Control Harness:
C54 Pre-excitation resistor
C55 EGR temperature solenoid (NAS)
C55-1 EGR temperature solenoid (EC)
C56 Purge solenoid (Except NAS)
C57 Distributor (EC)
C58 Distributor (Except NAS and EC)
C59 Front heated oxygen sensor
C60 Ignition coil
C61 Power transistor
C62 Noise filter
C63 Radio noise condenser
C64 A/C pressure switch (Low)
C65 Variable resistor (Leaded)
C66 Wiper motor
C67 Brake fluid level sensor
C68 Purge solenoid(NAS)
C69 Cruise actuator
C70 Fuel pump checker
C71 Ignition control adjusting connector
C72 A/T pulse generator
C73 Volume air flow sensor
C74 Transaxle valve body
C75 Throttle position sensor
C76 Vehicle speed sensor
C77 Transaxle range switch
C78 Idle speed control motor
C79 ATM oil temperature sensor
C80 Kick down servo switch
C92 Burglar alarm siren (Except NAS)
C95 Manifold differential pressure sensor (NAS)
C001 Connection with INTER harness
C002 Connection with INTER harness
C003 Connection with INTER harness (NAS)
EC02 Connection with ENGINE harness
EC03 Connection with ENGINE harness
G16 Dash ground

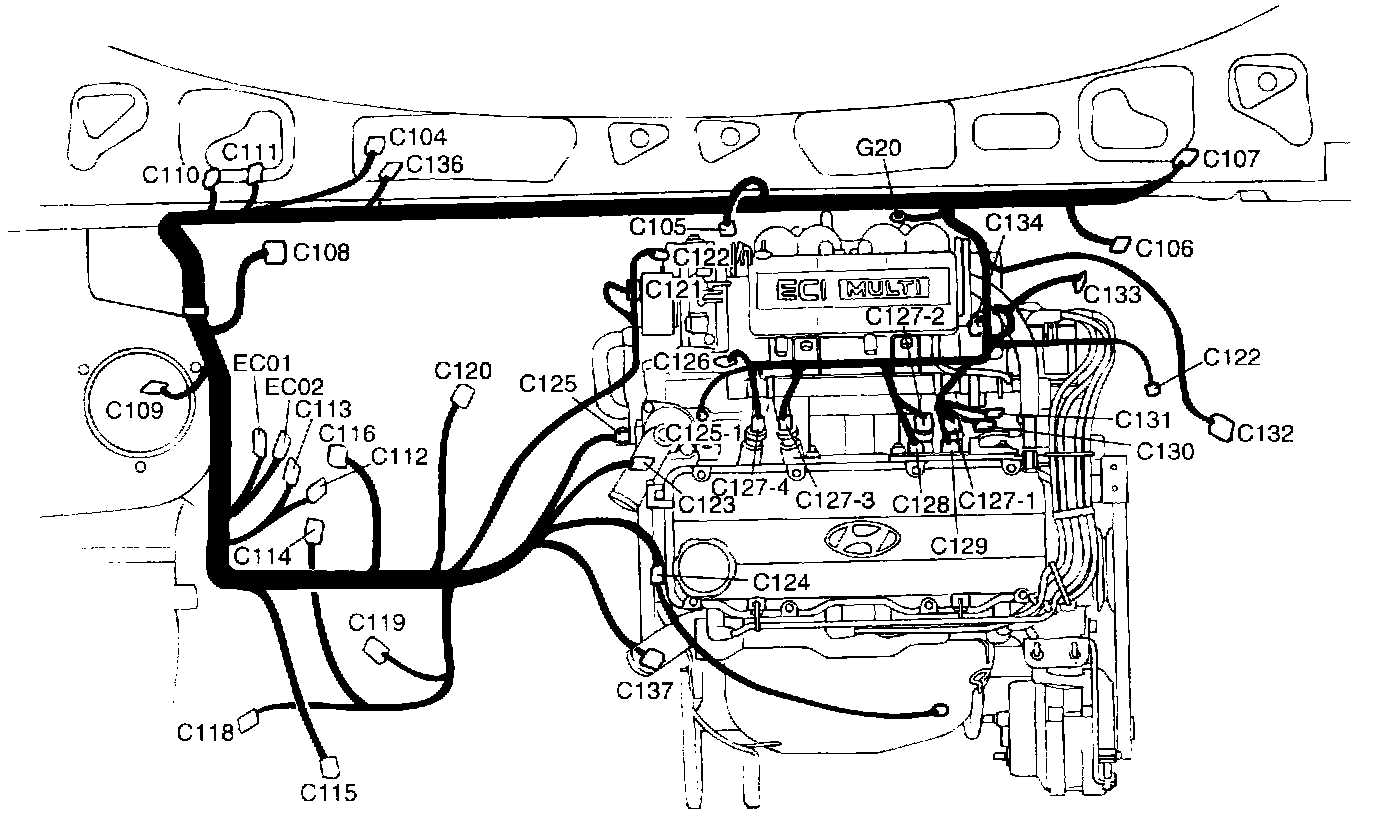

C104 Pre-excitation resistor
C105 Purge solenoid
C106 A/C pressure switch (Low)
C107 Wiper motor
C108 Brake fluid sensor
C109 Auto cruise pump
C110 Ignition timing adjusting connector
C111 Fuel pump checker
C112 Pulse generator
C113 Kick down servo switch
C114 Oil temperature sensor
C115 Back up switch
C116 Volume air flow sensor
C118 Transaxle range switch
C119 ATM solenoid valve
C120 Vehicle speed sensor
C121 Idle speed control motor
C122 Idle switch
C123 Thermo sensor (115°C) (M/EAST)
C124 Front heated oxygen sensor (Except EC)
C125 Engine control temperature sensor
C125-1 Engine control temperature sender
C126 Throttle position sensor
C127-1 Injector
C127-2 Injector
C127-3 Injector
C127-4 Injector
C128 Power transistor
C129 Distributor
C13O Noise filter
C131 Condenser
C132 Variable resistor (Leaded)
C133 A/C compressor
C134 Ignition coil
C136 Burglar alarm siren
C137 Front heated oxygen sensor (EC)
EC01 Connection with ENGINE harness
EC02 Connection with ENGINE harness
G20 Dash ground
