Home >> Hyundai >> 1997 >> Sonata GLS V6-3.0L >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Intake Manifold >> Upper Manifold (Surge Tank)

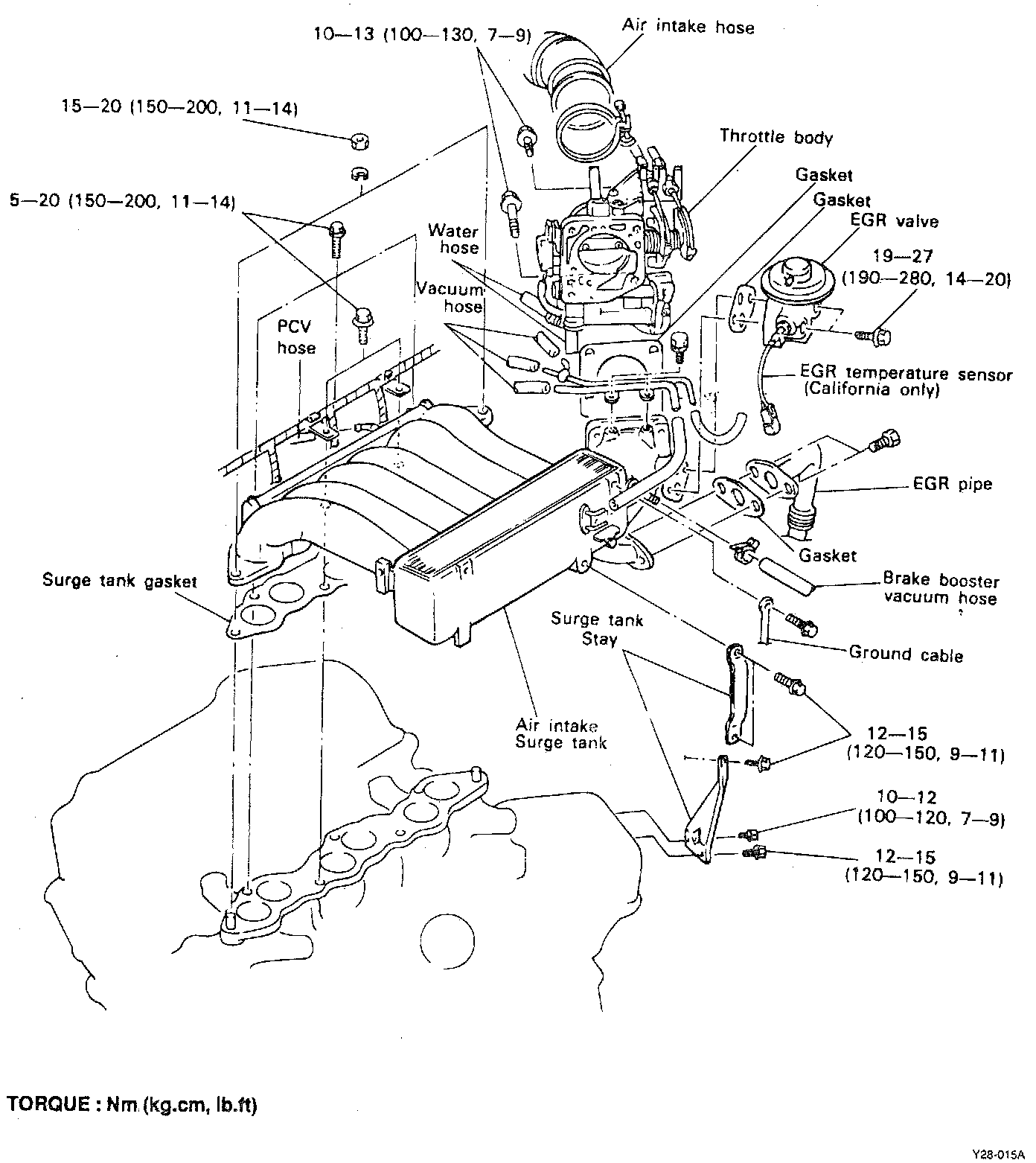

Upper Manifold (Surge Tank)
