Center Exhaust Pipe

WARNING: Before removing or inspecting the exhaust system, ensure that the exhaust system is cool.

REMOVAL
1. Disconnect the center exhaust pipe from the main muffler and the catalytic converter.

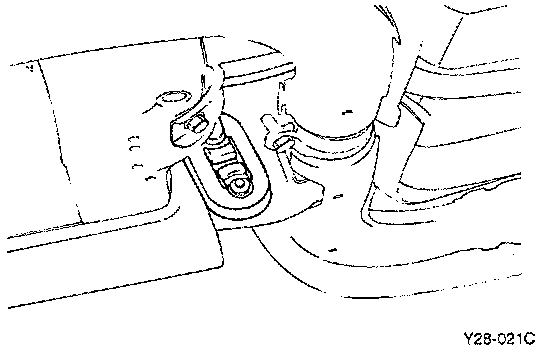

2. Remove the rubber hangers and take out the center exhaust pipe.

INSTALLATION
Installation is the reverse of removal, noting the following
a. Temporarily install the front exhaust pipe, the catalytic converter assembly, the center exhaust pipe, and the main muffler, in that order.
b. Install the rubber hangers so that they are identical (left and right) in length.
c. Tighten the parts securely, and then confirm that there is no interference with any body components.
