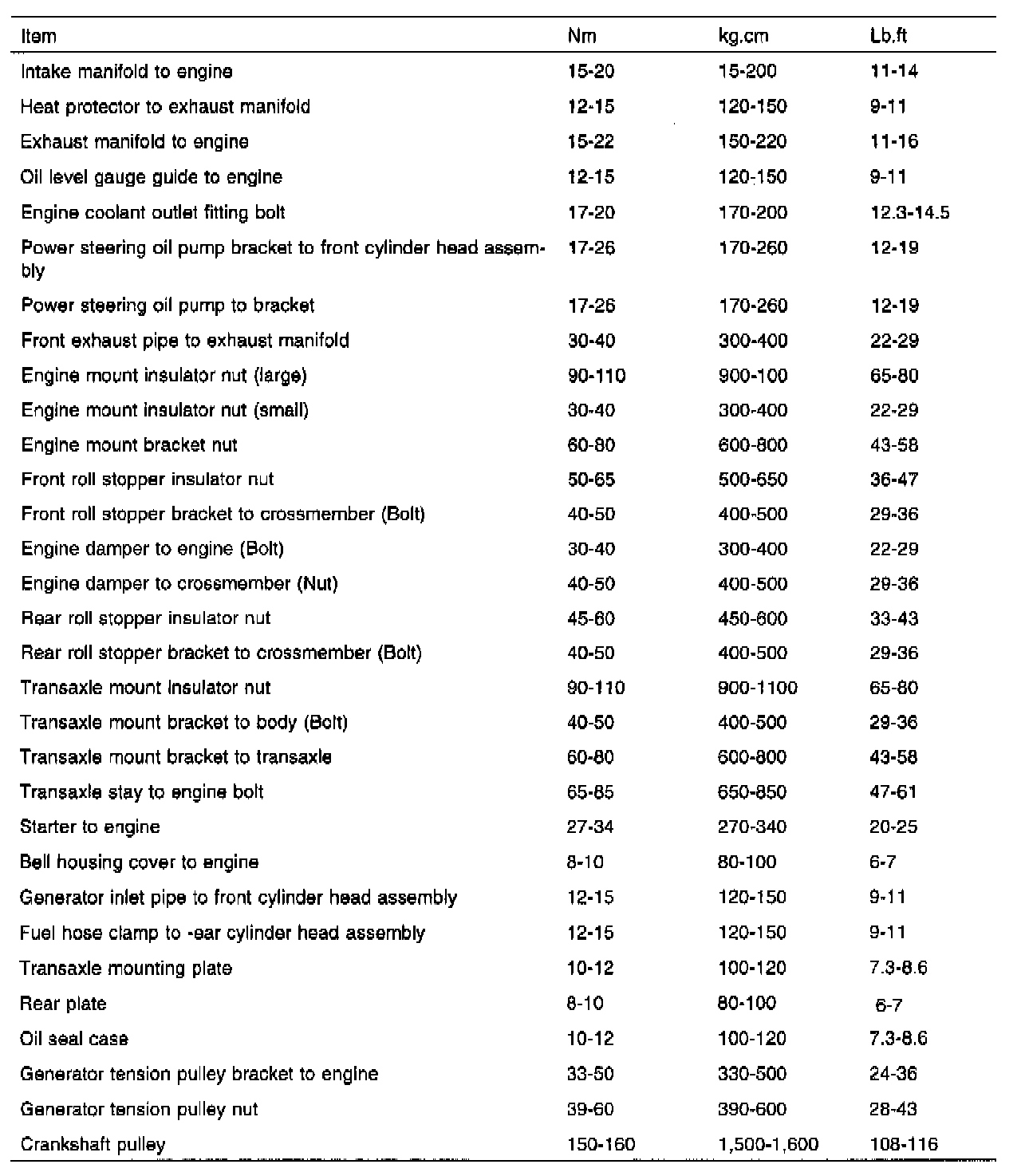

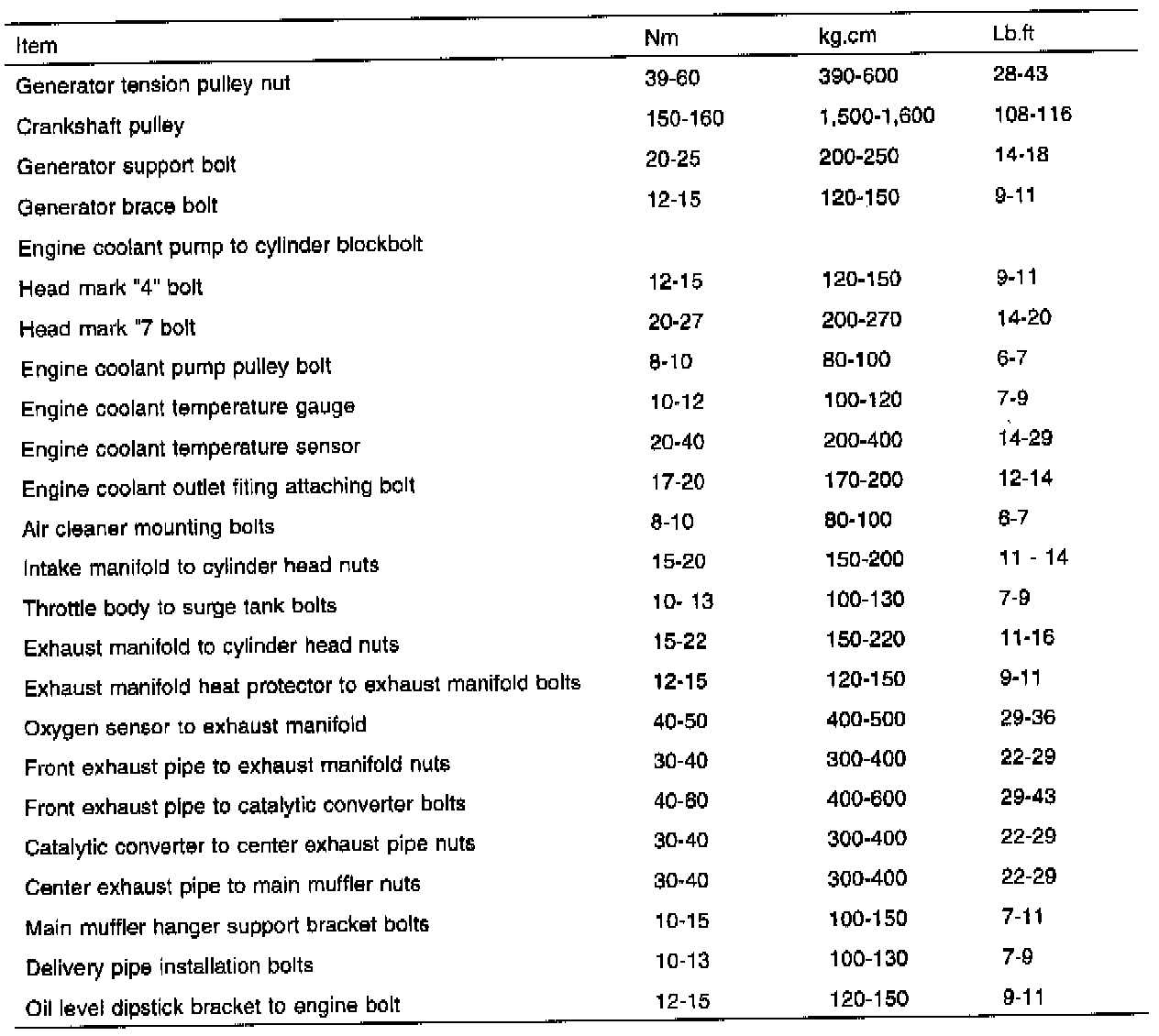

System Specifications

Fig. 14 Cylinder Head Bolt Tightening Sequence:

HEAD BOLT TIGHTENING SEQUENCE


Intake Manifold (Lower) To Engine 15-20 Nm (11-14 ft. lbs.)
Upper Intake Manifold Stay 12-15 Nm (9-11 ft. lbs.)
Upper Manifold To Lower Manifold 15-20 Nm (11-14 ft. lbs.)
Upper Manifold To Lower Manifold 15-20 Nm (11-14 ft. lbs.)












Mounting Brackets





Roll Stopper Brackets





Transaxle Mounts






Drive Plate-To-Converter Bolt 46-53 Nm (34-38 ft. lbs.)






Camshaft Bearing Cap Torque





Camshaft Bearing Cap Tightening Sequence
Insert bearing cap No. 1 so that the notch on the end of the shaft faces in the direction shown in the illustration. Insert the mounting bolt.
