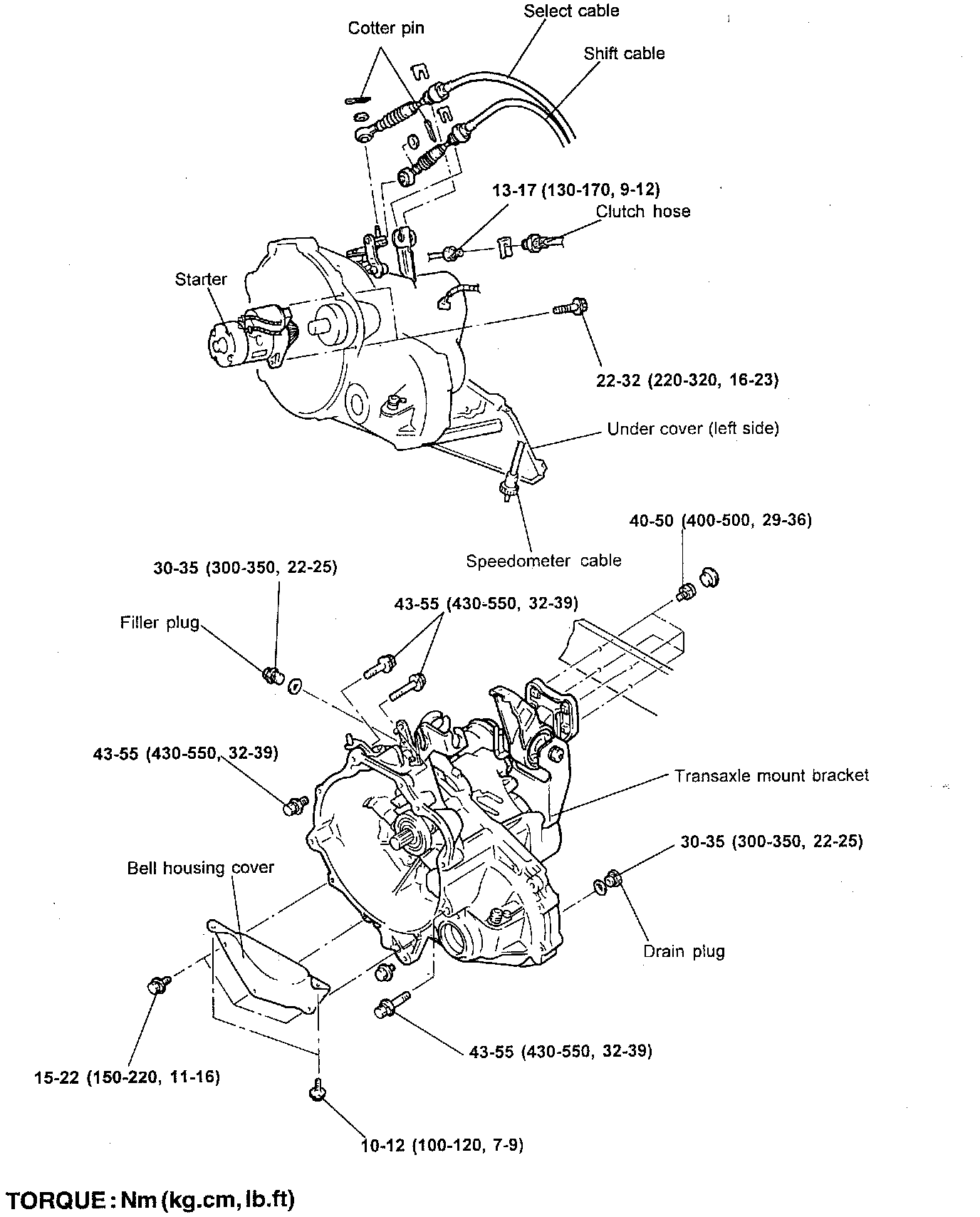

Removal and Installation

REMOVAL
1. Remove the clutch release cylinder.
2. Remove the drain plug and drain out the transaxle oil.
3. Remove the air cleaner assembly.





4. Remove the select cable and shift cable.





5. Separate the backup light switch connector.





6. Disconnect the speedometer sensor connector and remove the speedometer sensor.
7. Remove the starter motor.
8. Remove the stabilizer bar, tie rod end, lower arm ball joint, drive shaft side cover, under cover.





9. Remove the bell housing cover.





10. Remove the cap and transaxle mounting bracket.





11. Remove the transaxle assembly.

INSTALLATION
Installation is the reverse of removal.
