Data Link Connector

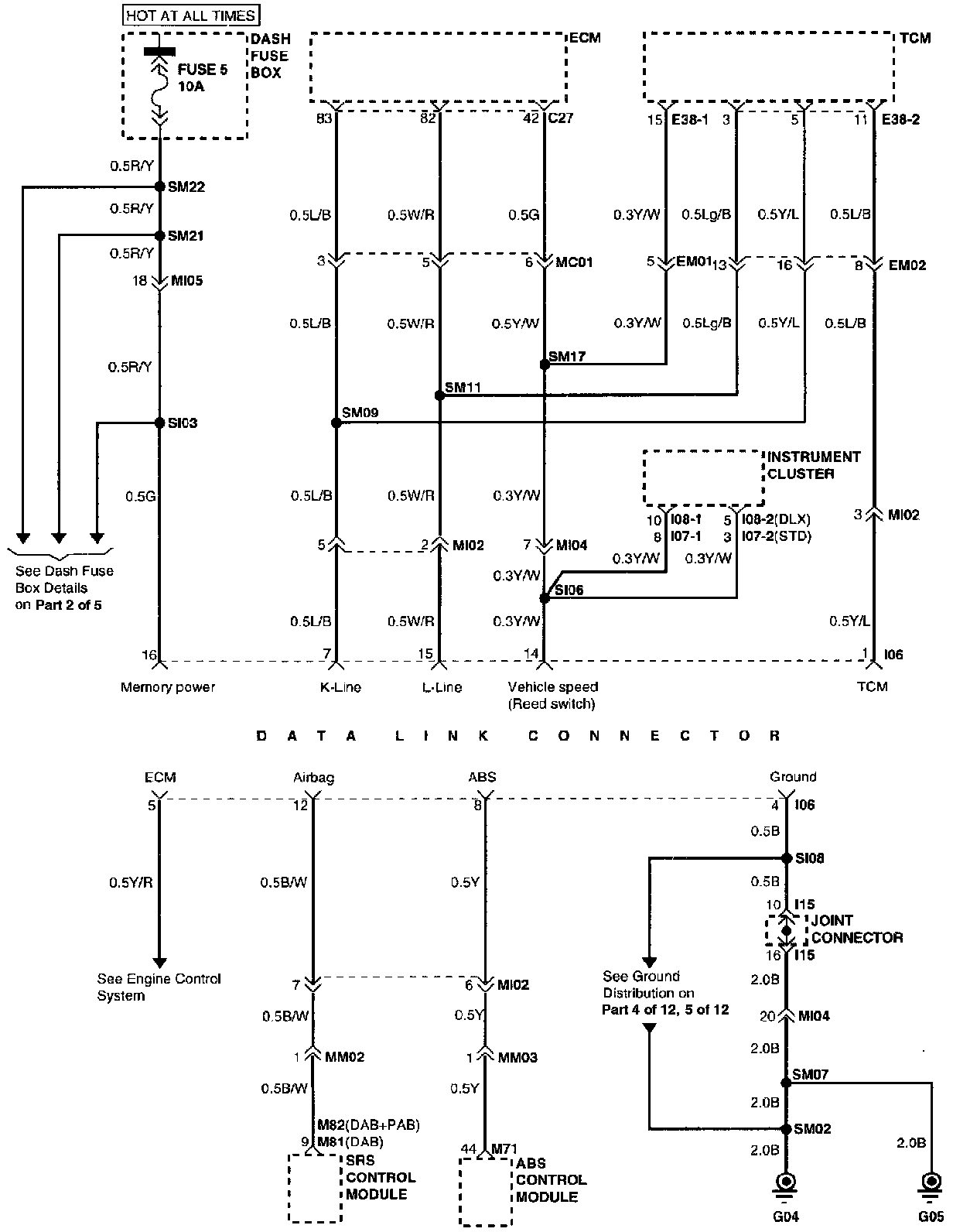

Circuit Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views


Connector Locations Are Found In The Locations Section Of The Data Link Connector.
Locations
