Home >> Hyundai >> 1998 >> Accent GS Coupe L4-1495cc 1.5L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Ignition System

Ignition System

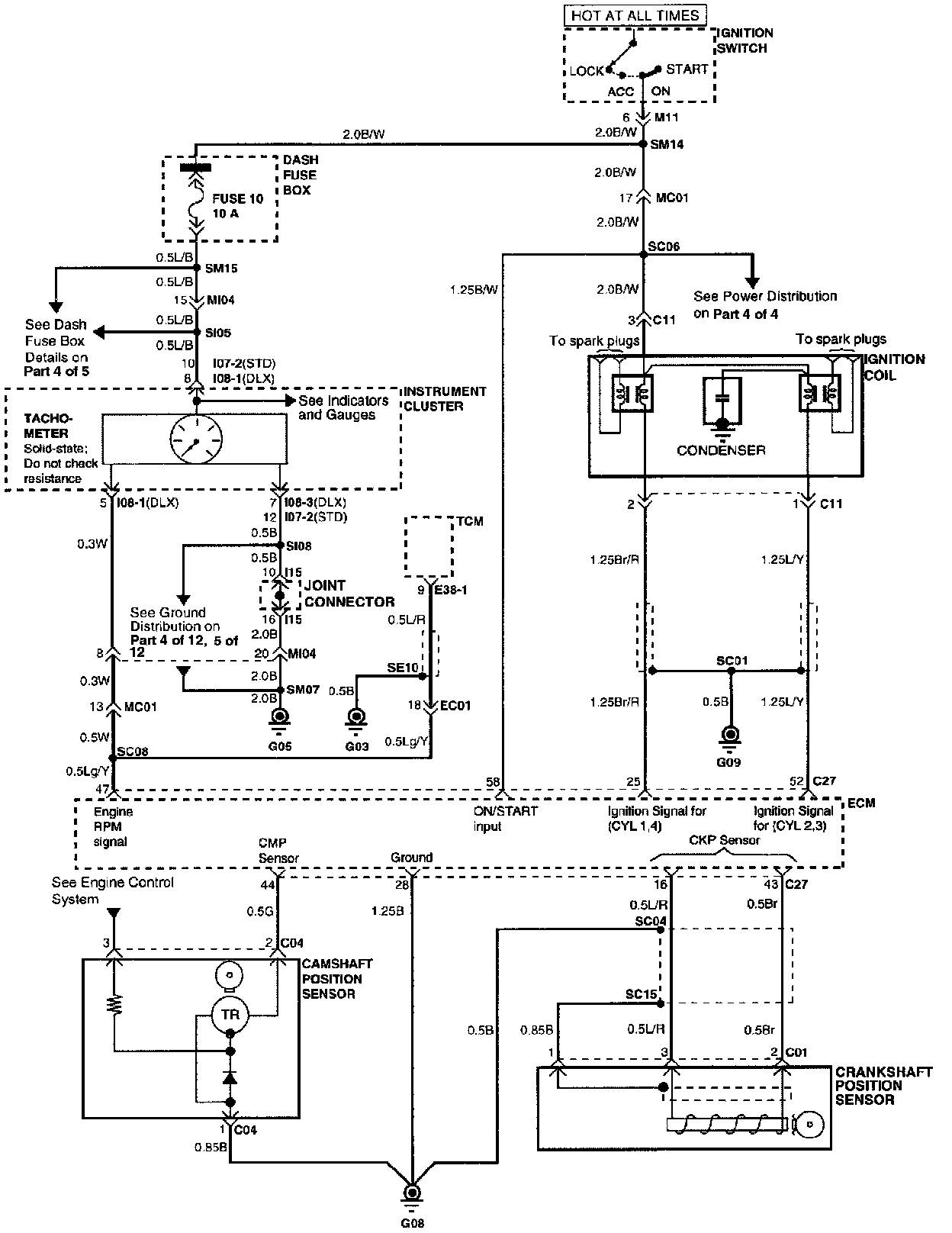

Circuit Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views


Connector Locations Are Found In The Locations Section Of The Ignition System.
