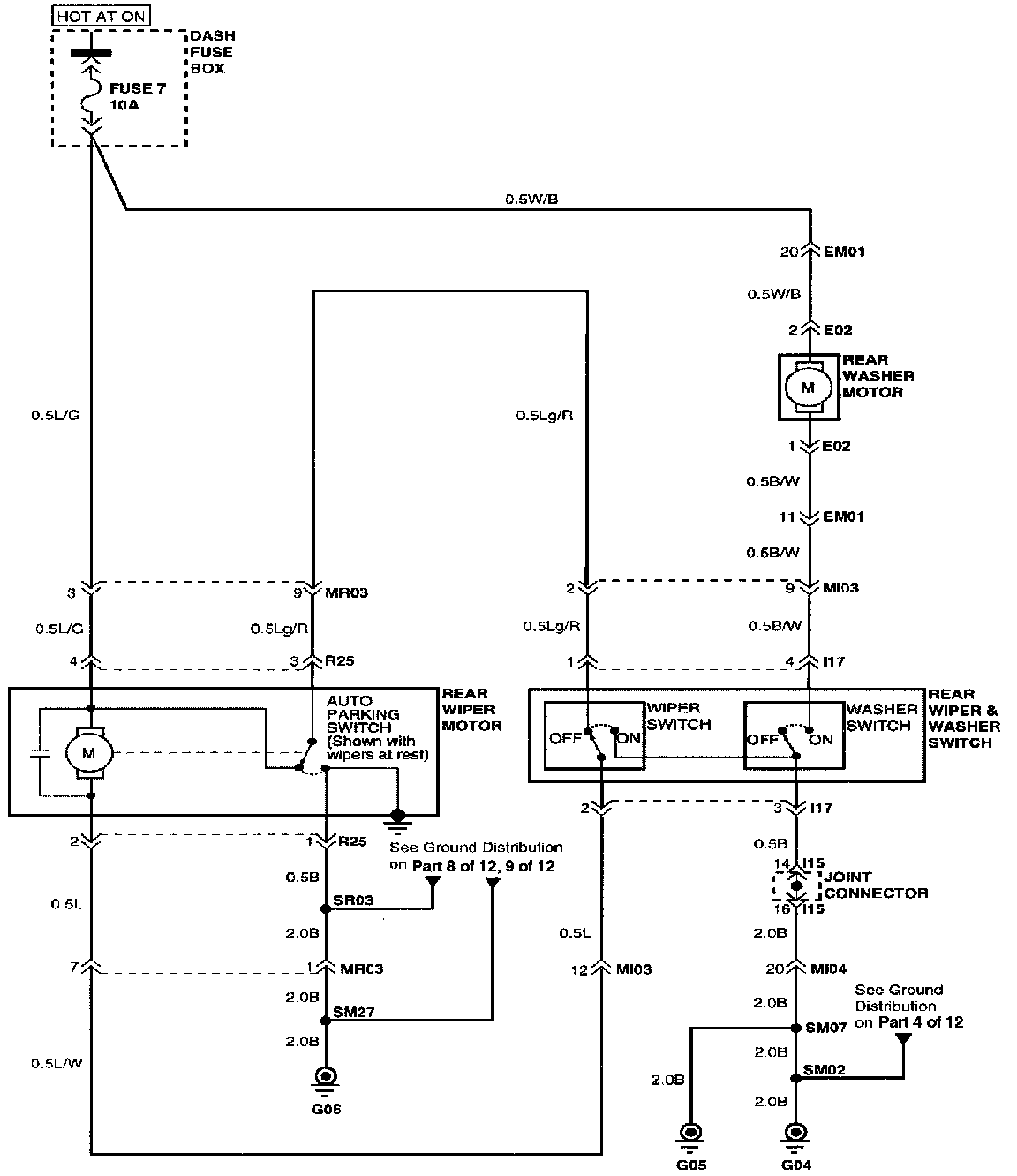

Rear Wiper and Washer





Electrical Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Wiper and Washer Systems.
Locations
