Brake Lamp

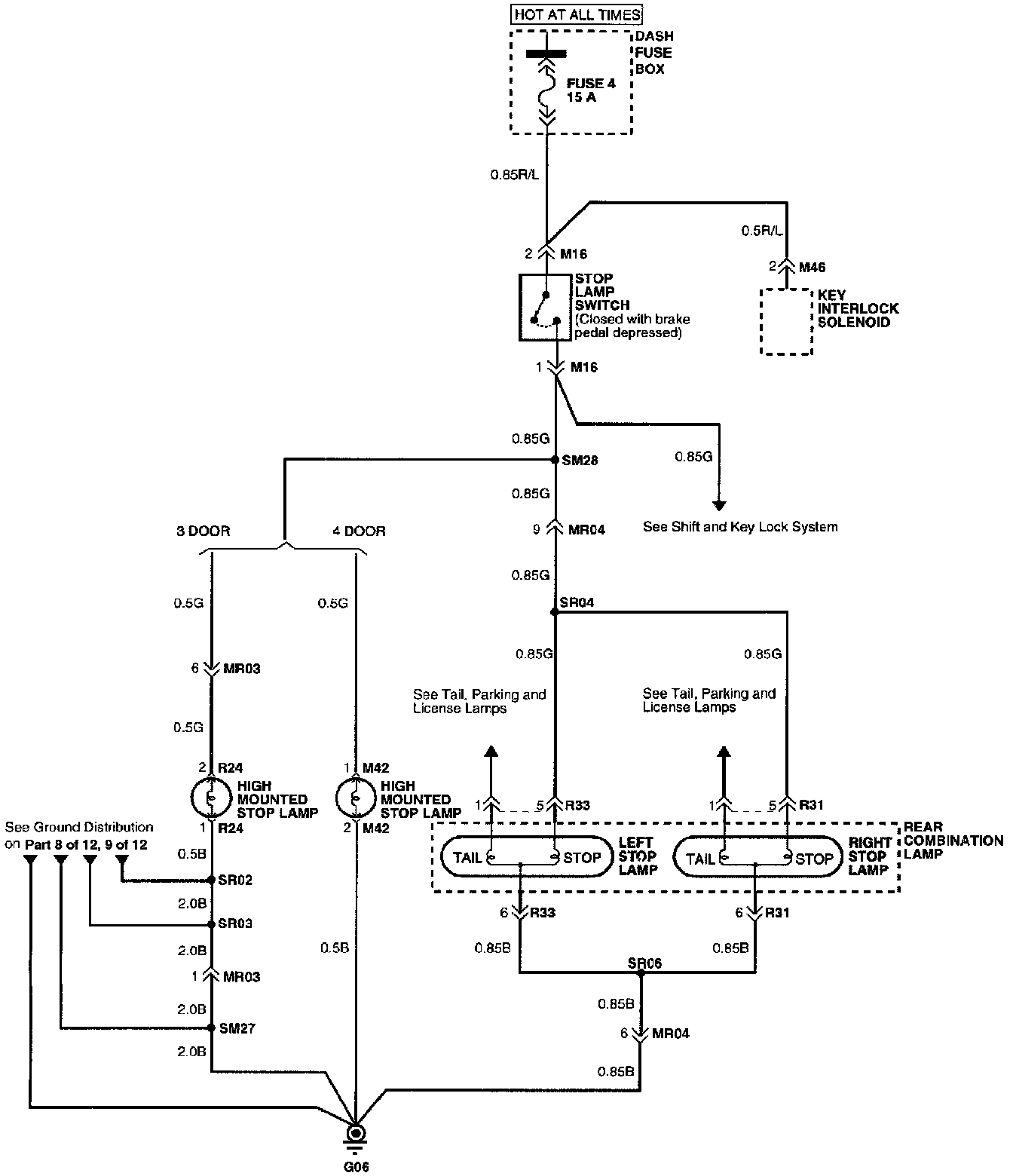

Electrical Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Stop Lamps.
Locations
