Cigarette Lighter

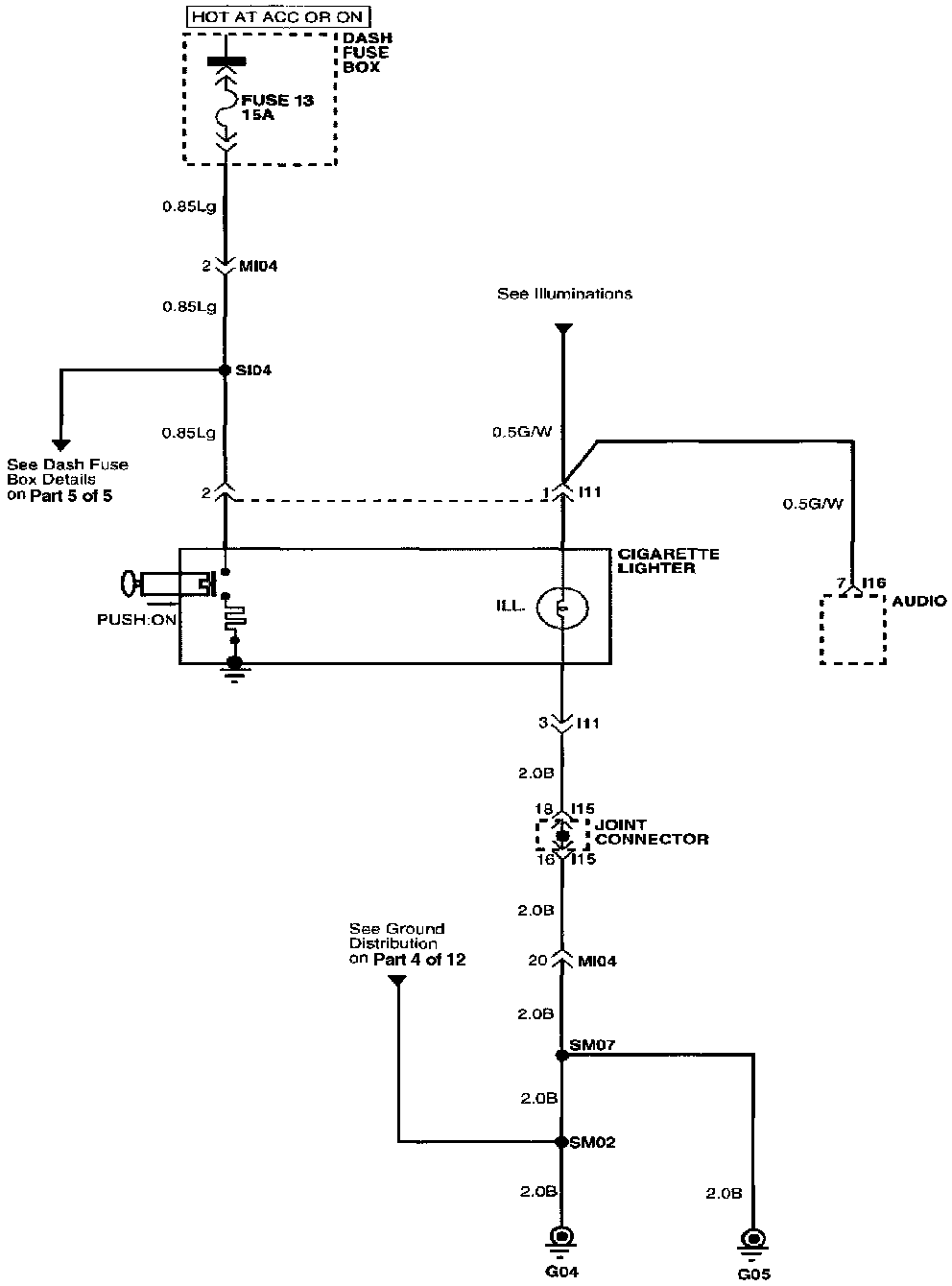

Electrical Diagram

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views

Connector Locations Are Found In The Locations Section Of The Cigarette Lighter.
Connector Locations
