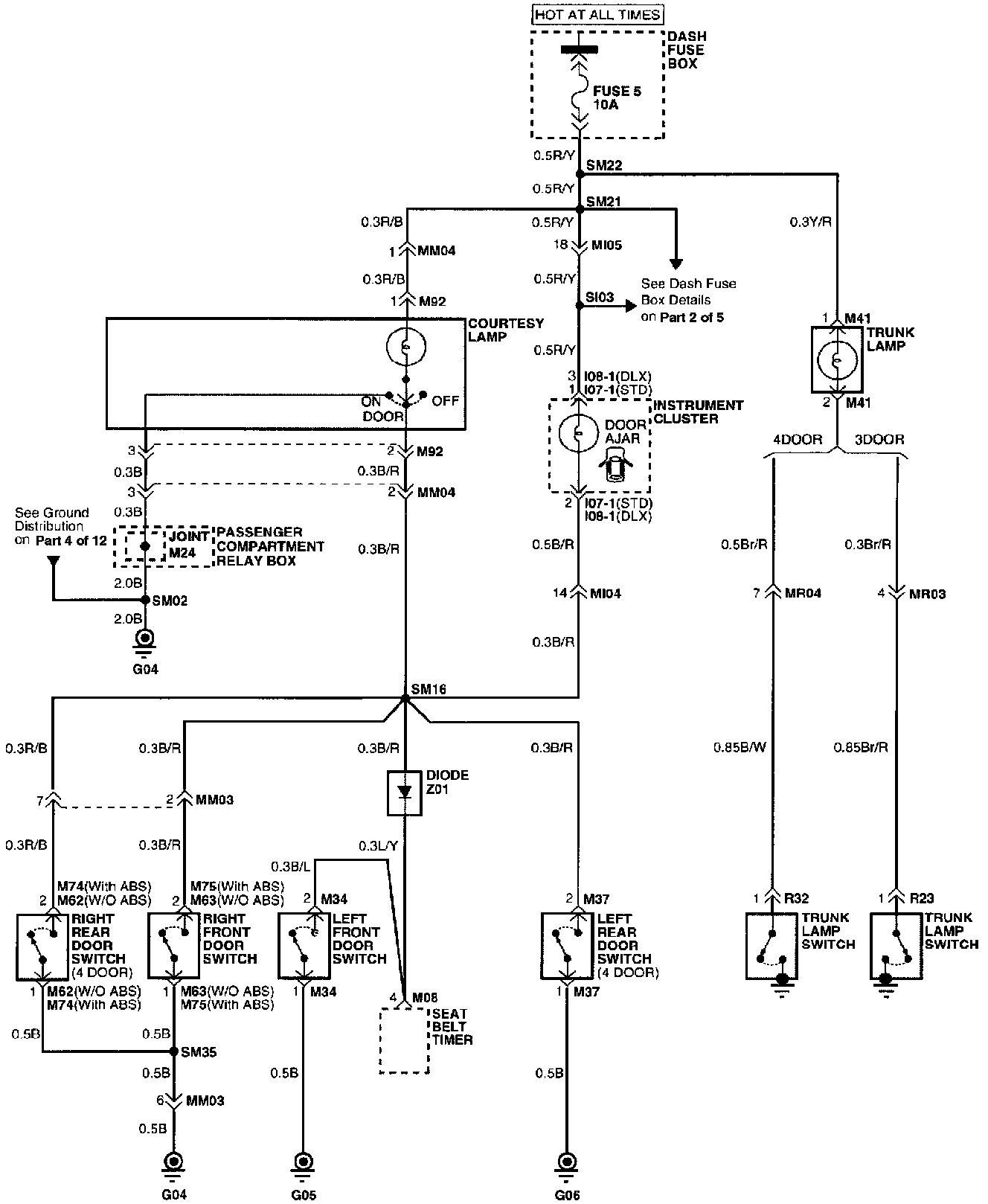

Trunk Lamp





Electrical Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views


Connector Locations Are Found In The Locations Section Of The Trunk Lamp.
