Instrument Cluster / Carrier: Service and Repair

1. Disconnect the battery ground cable.
2. Remove the shroud under cover.

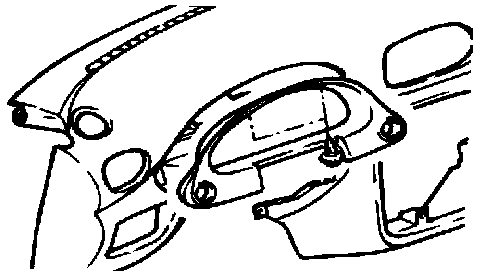

3. Remove the cluster facia panel.

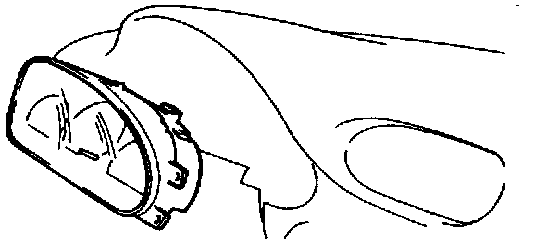

4. Remove the cluster retaining screws and carefully pull rear ward enough to disengage speedometer cable.
5. Carefully pull cluster away from instrument panel and disconnect cluster wiring from instrument circuit board.
6. Installation is the reverse order of removal.
