Emission Control Systems: Locations

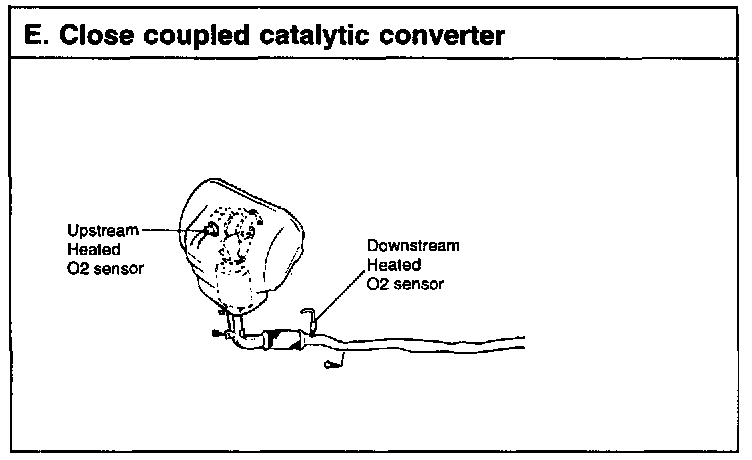

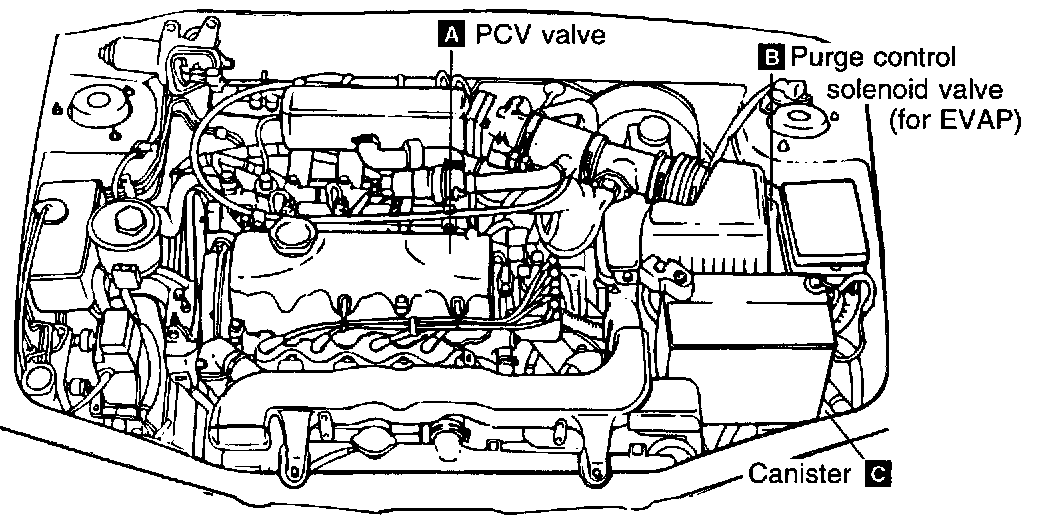

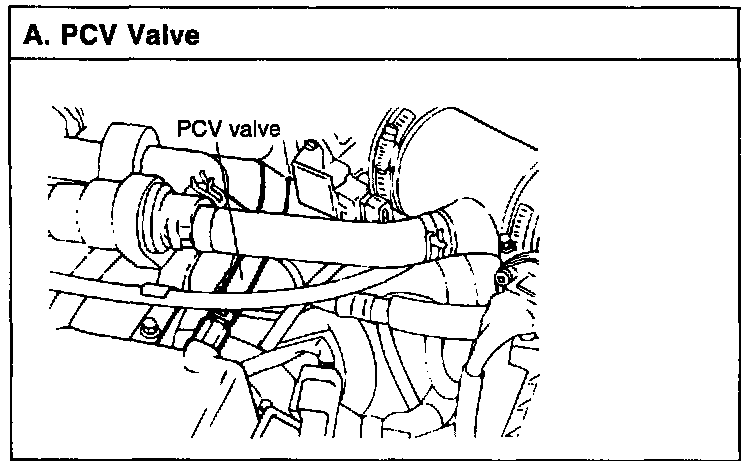

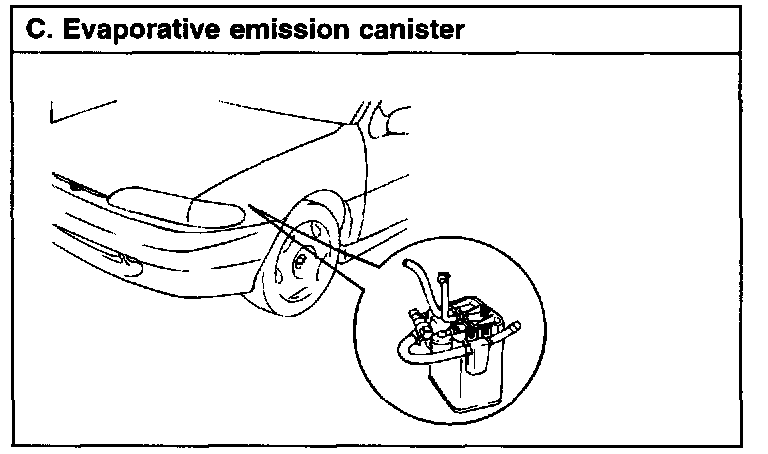

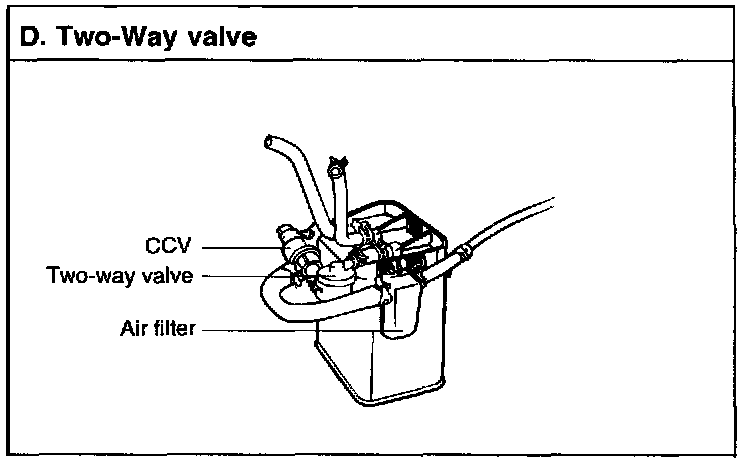

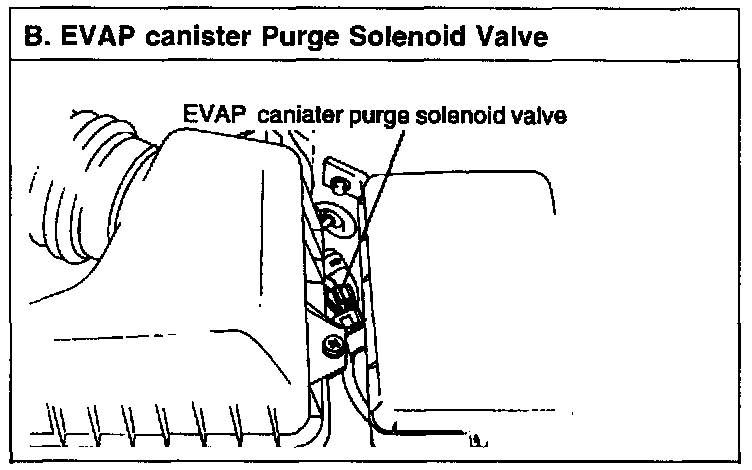

EMISSION CONTROLS COMPONENT LOCATIONS

NOTE: SOHC Shown DOHC similar.
